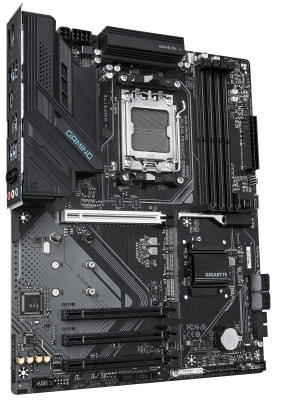

GIGABYTE B850 Gaming WIFI6

149,00 EUR

inkl. 19% MwSt. zzgl. Versand

Sie können diesen Artikel auch finanzieren!

Informationen zu möglichen Raten

Beschreibung

B850 GAMING WIFI6

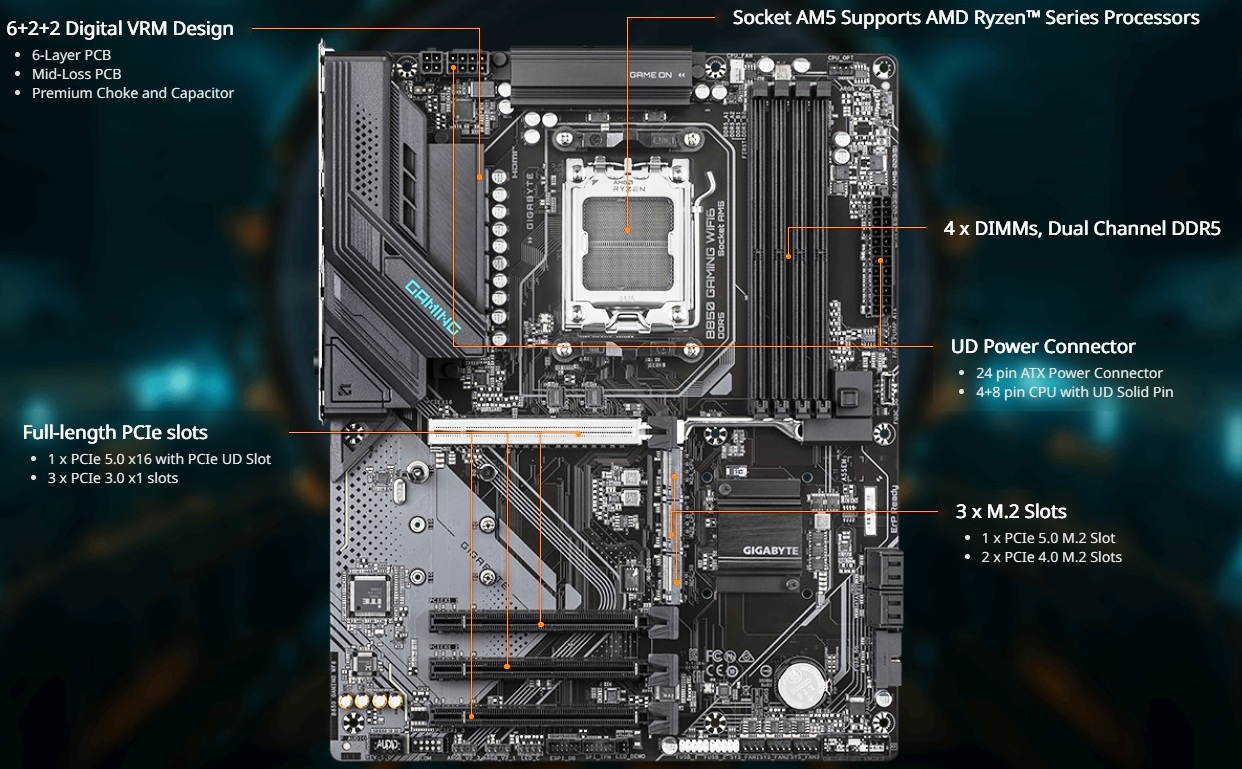

X3D Turbo Mode : Unleash new era gaming performance
DDR5 OC up to 8200MT/s
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital 6+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
PCIe EZ-Latch Plus : PCIe slots with Quick Release Design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0x4 slot
Efficient Thermal : VRM Thermal Armor Advanced
Fast Networking : GbE LAN & Wi-Fi 6 802.11ax
Extended Connectivity : HDMI, Displayport

Spezifikation
Prozessor

Chipsatz

Arbeitsspeicher

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Onboard Grafik

Audio

LAN

Wireless Communication module

Erweiterungssteckplätze

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

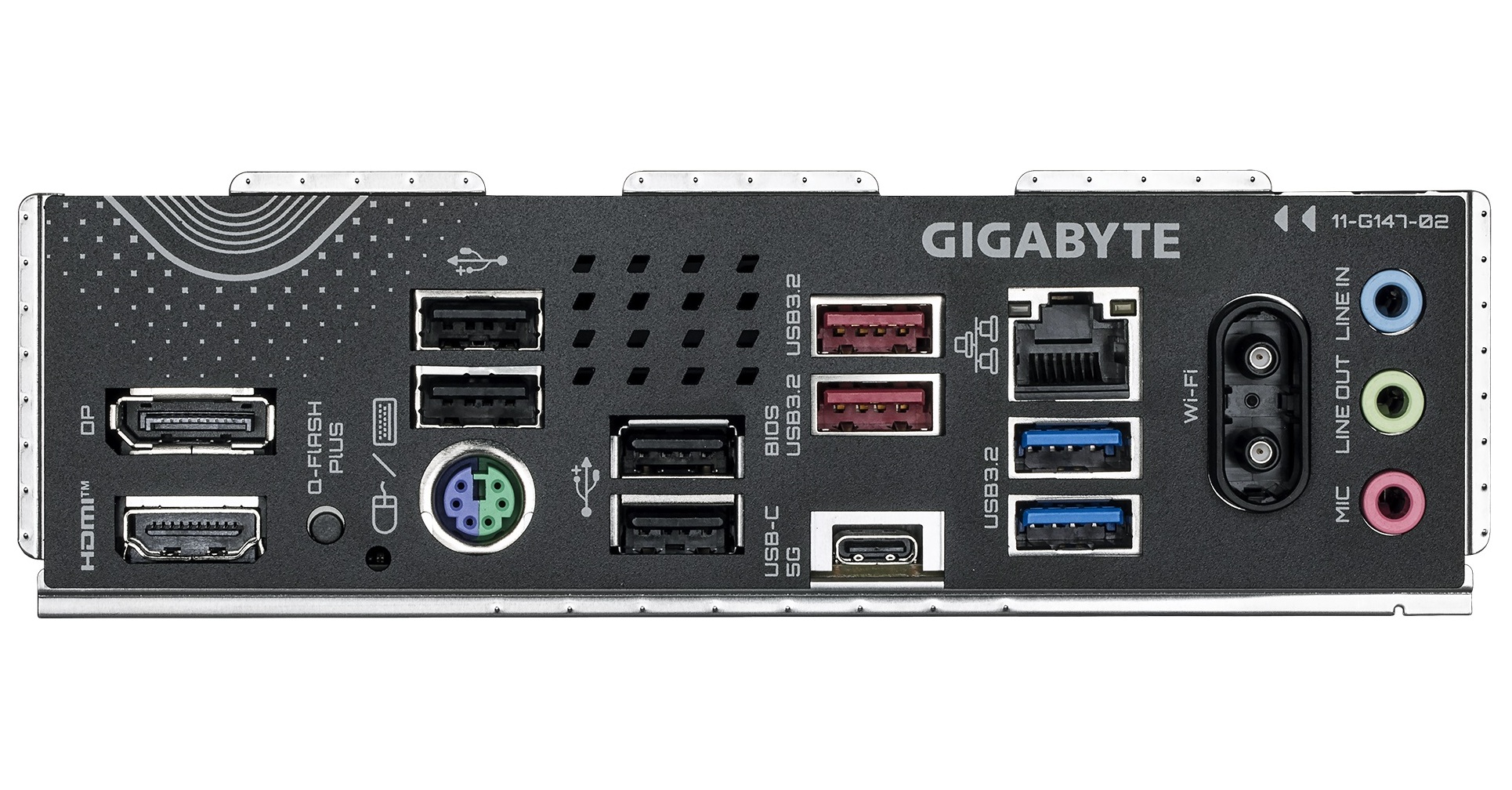

USB

CPU:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
