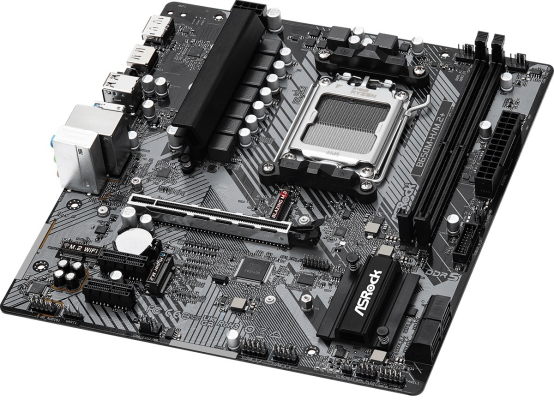

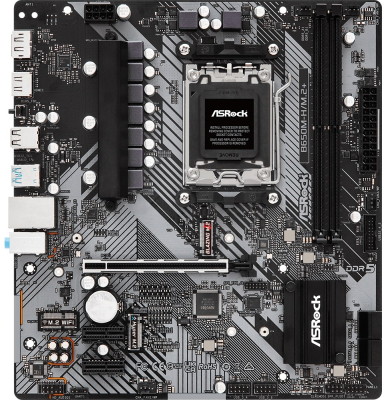

ASRock B650M-H/M.2+
ASRock B650M-H/M.2+
ASRock B650M-H/M.2+
ASRock B650M-H/M.2+
ASRock B650M-H/M.2+
Preview: ASRock B650M-H/M.2+
Preview: ASRock B650M-H/M.2+
Preview: ASRock B650M-H/M.2+
Preview: ASRock B650M-H/M.2+
Preview: ASRock B650M-H/M.2+
ASRock B650M-H/M.2+
ASRock B650M-H/M.2+
ASRock B650M-H/M.2+
ASRock B650M-H/M.2+
ASRock B650M-H/M.2+
ASRock B650M-H/M.2+
Mobile Preview: ASRock B650M-H/M.2+
Mobile Preview: ASRock B650M-H/M.2+
Mobile Preview: ASRock B650M-H/M.2+
Mobile Preview: ASRock B650M-H/M.2+
Mobile Preview: ASRock B650M-H/M.2+

ASRock B650M-H/M.2+

Lagernd, Lieferung ca 1-3 Tage Lagernd, Lieferung ca 1-3 Tage
99,00 EUR

inkl. 19% MwSt. zzgl. Versand

Sie können diesen Artikel auch finanzieren!
Informationen zu möglichen Raten
Auf den Merkzettel
Frage zum Produkt
Beschreibung
B650M-H/M.2+
  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • 6+1+1 Power Phase, Dr.MOS
  • 2 x DDR5 DIMMs
  • Supports Dual Channel, up to 6400+ (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
  • Integrated AMD RDNA™ 2 Graphics *
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4)
  • 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback

Specification
Unique Feature
  • Superb Productivity
  • PCIe Gen5 (M.2)
  • Dual Channel DDR5
  • Rock-Solid Durability
  • 6+1+1 Power Phase, 50A Dr.MOS for VCore
  • EZ Update
  • BIOS Flashback Button
  • ASRock Auto Driver Installer
  • EZ Troubleshooter
  • ASRock Post Status Checker
CPU
  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset
  • AMD B650
Memory
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)
  • Max. capacity of system memory: 128GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS
  • 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
  • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
LAN
  • Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111H
Slots
  • CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
  • Chipset:
  • 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage
  • CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • Chipset:
  • 4 x SATA3 6.0 Gb/s Connectors
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB
  • 1 x USB 3.2 Gen1 Type-C (Rear)
  • 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)
Connector
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x CPU Fan Connector (4-pin)
  • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Rear Panel I/O
  • 2 x Antenna Mounting Points
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen1 Type-C Port
  • 3 x USB 3.2 Gen1 Type-A Ports
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Software
  • ASRock Motherboard Utility (A-Tuning)
UEFI
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
Accessories
  • 1 x User Manual
  • 1 x I/O Shield
  • 2 x SATA Data Cables
  • 3 x Screws for M.2 Sockets
Form Factor
  • Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
OS
  • Microsoft Windows® 10 64-bit / 11 64-bit
Certifications
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
