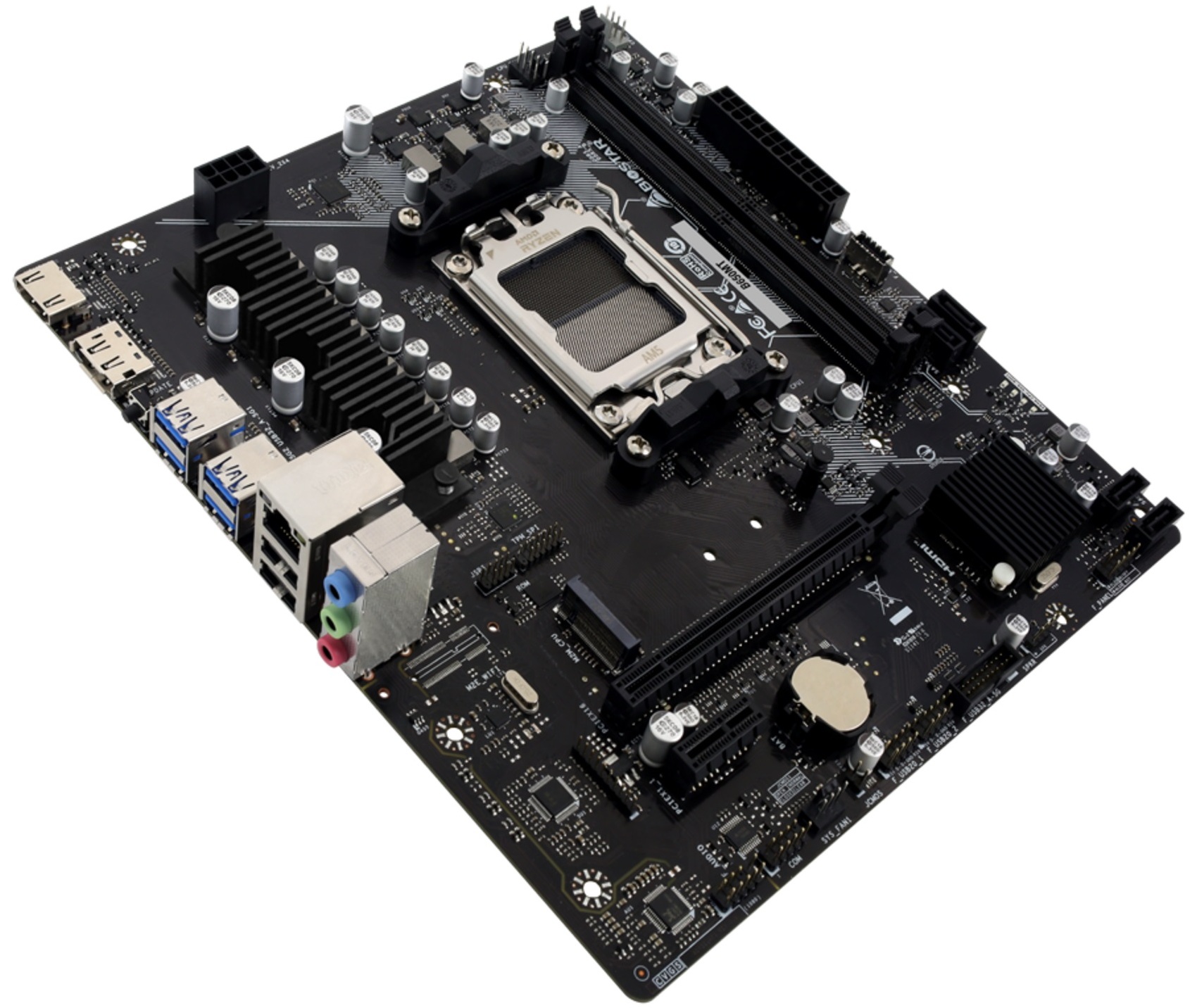

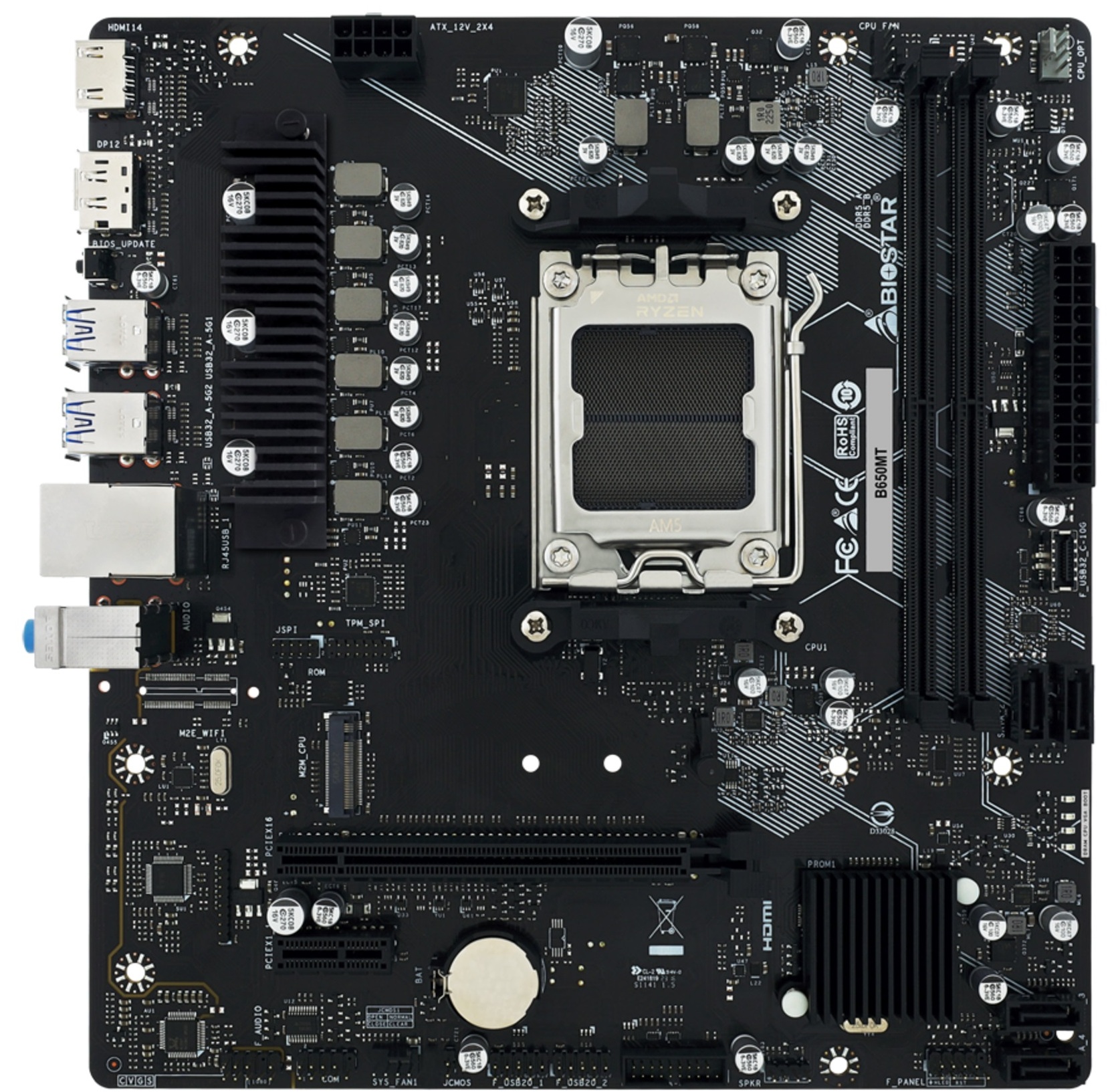

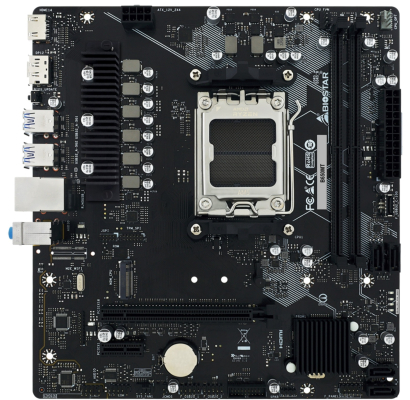

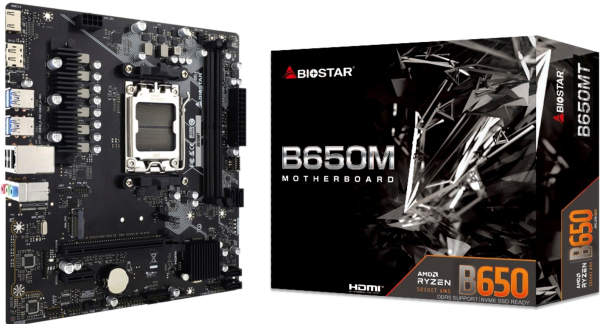

Biostar B650MT
Biostar B650MT
Biostar B650MT
Art.Nr.:
Lieferzeit:
Lagernd, Lieferung ca 1-3 Tage
99,00 EUR
inkl. 19% MwSt. zzgl.
Versand
In den Warenkorb
Sie können diesen Artikel auch finanzieren!
Informationen zu möglichen Raten
Auf den Merkzettel
Frage zum Produkt
Beschreibung
Hersteller/EU Verantwortliche Person
Beschreibung
B650MT
Socket AM5 support AMD Ryzen™ 7000 / 8000 / 9000 series Processors
AMD B650 single chip architecture
Supports 2-DIMM DDR5 up to 128 GB Memory
Supports Realtek Gigabit LAN
Supports Front USB 3.2 Gen2 Type-C
Supports PCIe 4.0 M.2 (64Gb/s)
Supports HDMI® 4K resolution

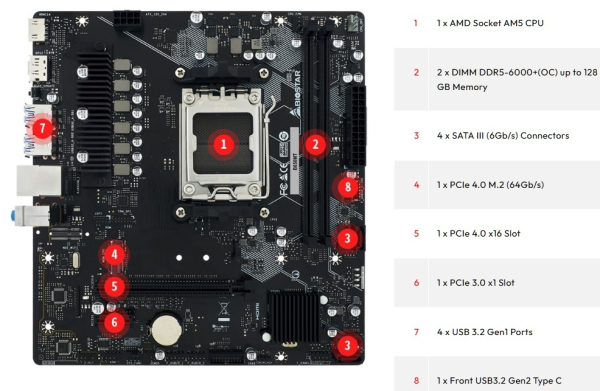

SPECIFICATION
Chipset
AMD B650
CPU SUPPORT
Socket AM5 support AMD Ryzen™ 7000 / 8000 / 9000 series Processors
Support for future AMD Ryzen processors with BIOS update
MEMORY
AMD Ryzen 7000 / 8000 / 9000 Series Processors:
Supports Dual Channel DDR5 - 6000+(OC) MT/s, Non-ECC, Un-buffered Memory
2 x DDR5 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Support Intel Extreme Memory Profile (XMP) memory modules and AMD EXTended Profiles for Overclocking (EXPO) memory modules
INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP
STORAGE
Total support 1 x M.2 Socket and 4 x SATA (6Gb/s) ports
AMD Ryzen 7000 / 8000 / 9000 Series Processors
1 x M.2 (Key M) Socket (M2M_CPU) :
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s) - NVMe SSD
AMD B650 Chipset
4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
LAN
Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC
ALC897
7.1 Channels, High Definition Audio, Hi-Fi
USB
1 x USB 3.2 Gen2 Type-C port (1 via internal headers)
6 x USB 3.2 Gen1 ports (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT
AMD Ryzen 7000 / 8000 / 9000 Series Processors
1 x PCIe 4.0 x16 Slot (x16 or x8/x8 mode)
AMD B650 Chipset
1 x PCIe 3.0 x1 Slot

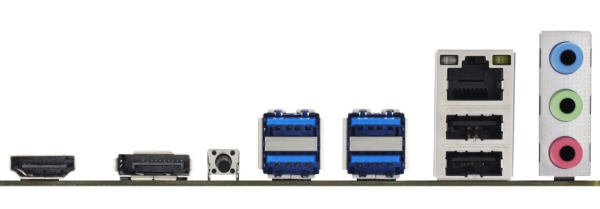

REAR I/O
1 x BIOS UPDATE Button
1 x HDMI® Port (HDMI®1.4)
1 x DP Port (DP1.2)
4 x USB 3.2 (Gen1) Type-A Ports
2 x USB 2.0 Type-A Ports
1 x Giga LAN port
3 x Audio Jack
INTERNAL I/O
4 x SATA III Connector (6Gb/s)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x USB 3.2 (Gen2) Type-C Header
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x CPU water cooling connector (CPU_OPT)
1 x Front Panel Header
1 x Front Audio Header
1 x Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION
Micro ATX Form Factor Dimension: 22.1cm x 23.5cm ( W x L )
OS SUPPORT
Supports Windows 10(64bit)/ 11(64bit)
BUNDLE SOFTWARE
BullGuard
ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x M.2 Anchor
