GIGABYTE A620M H
GIGABYTE A620M H
GIGABYTE A620M H
Art.Nr.:
Lieferzeit:
Lagernd, Lieferung ca 1-3 Tage
89,00 EUR
inkl. 19% MwSt. zzgl.
Versand
In den Warenkorb
Finanzierung verfügbar ab 99 EUR bis 5000 EUR Warenkorbwert
Auf den Merkzettel
Frage zum Produkt
Beschreibung
Hersteller/EU Verantwortliche Person
Beschreibung

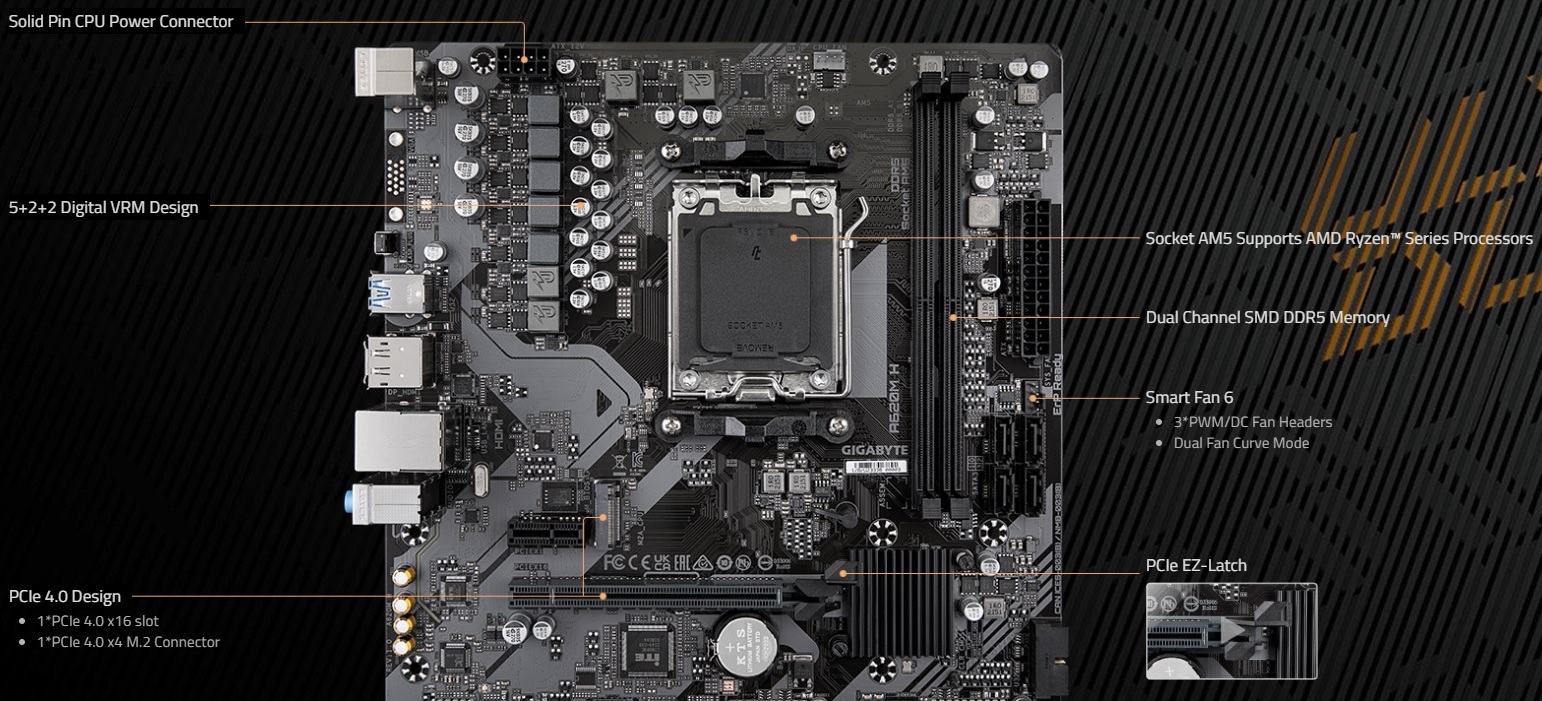

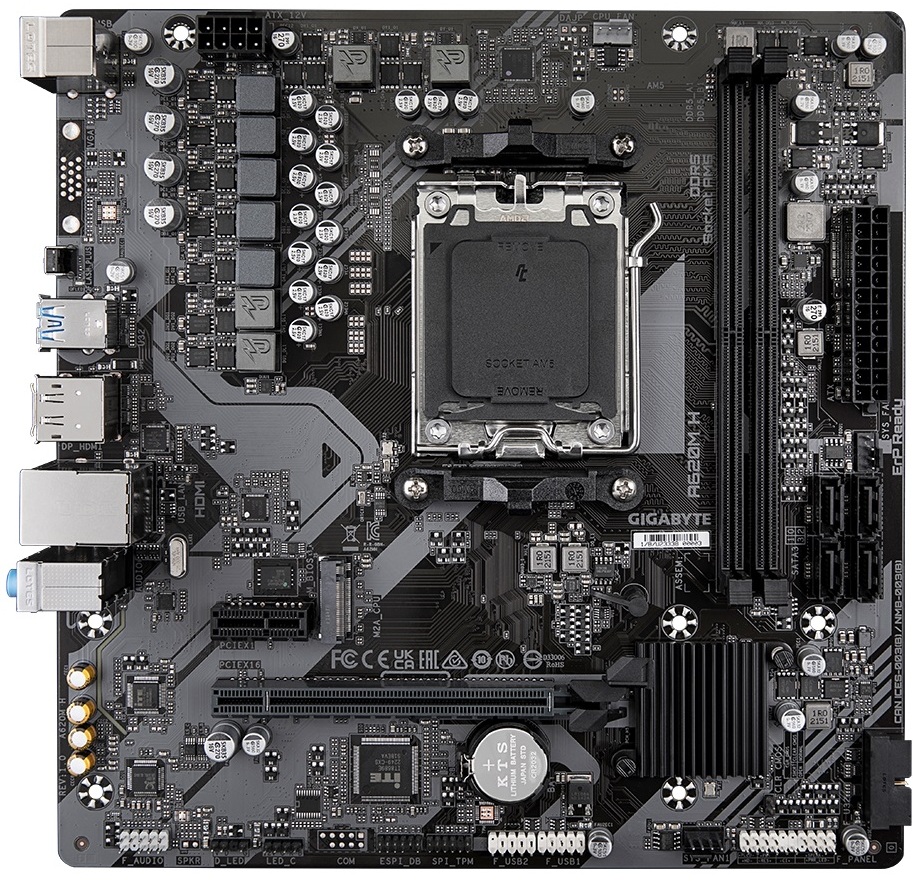

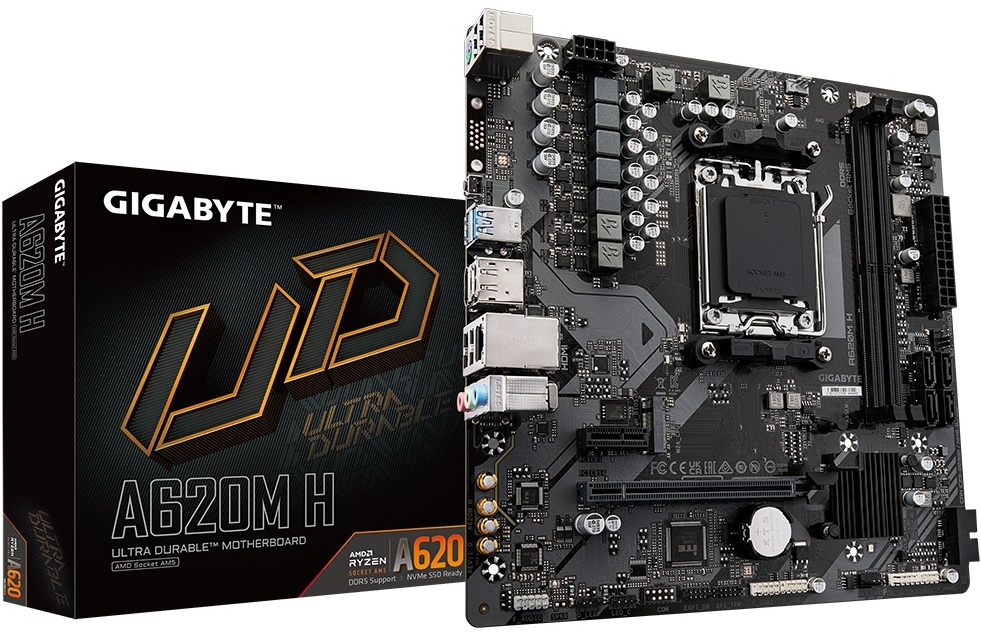

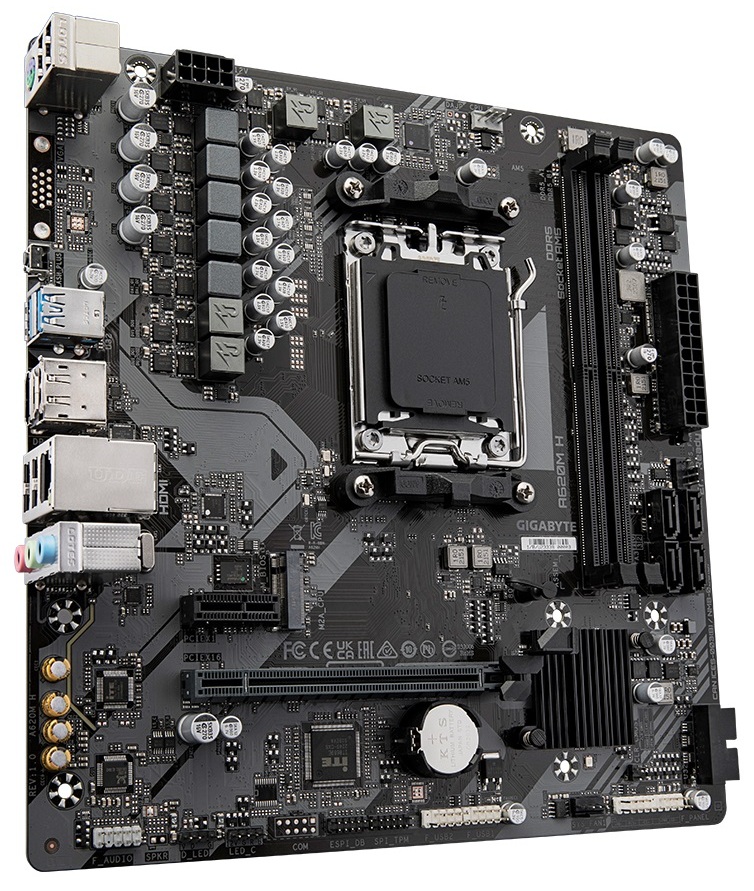

A620M H
AMD Socket AM5:Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Unparalleled Performance:5+2+2 Phases Digital VRM Solution
Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
EZ-Latch:PCIe x16 Slot with Quick Release Design
Fast Networks:GbE LAN
Extended Connectivity:DP, HDMI
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Spezifikation
Prozessor
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipsatz
AMD A620
Arbeitsspeicher
Support for DDR5 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Grafik
Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Support for DisplayPort 1.4 version.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Erweiterungssteckplätze
1 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:
2 x USB 3.2 Gen 1 ports on the back panel
1 x USB 2.0/1.1 port on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

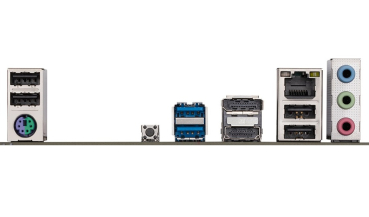

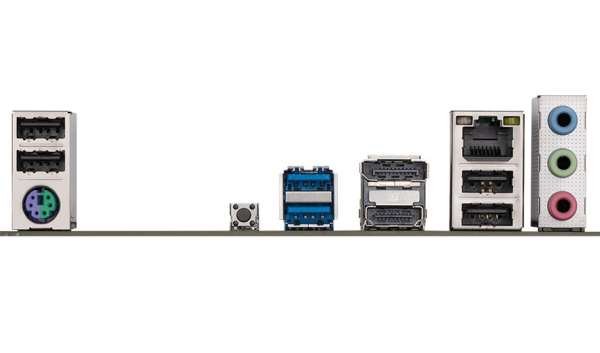

Rückseite I/O Panel
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks
I/O
iTE® I/O Controller Chip
H/W Überwachung
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Einzigartige Funktionen
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash Plus
Support for Q-Flash
Softwarebeigaben
Norton® Internet Security (OEM version)
LAN bandwidth management software
Betriebssystem
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 23.0cm x 22.5cm
Hersteller/EU Verantwortliche Person
Giga-Byte Technology BV
Steenoven 24
5626 Eindhoven
Niederlande
