-8%

GIGABYTE X870 Gaming WIFI6

Lagernd, Lieferung ca 1-3 Tage Lagernd, Lieferung ca 1-3 Tage
Bisher 239,00 EUR
Jetzt 219,00 EUR

inkl. 19% MwSt. zzgl. Versand

Sie können diesen Artikel auch finanzieren!
Informationen zu möglichen Raten
Auf den Merkzettel
Frage zum Produkt
Beschreibung

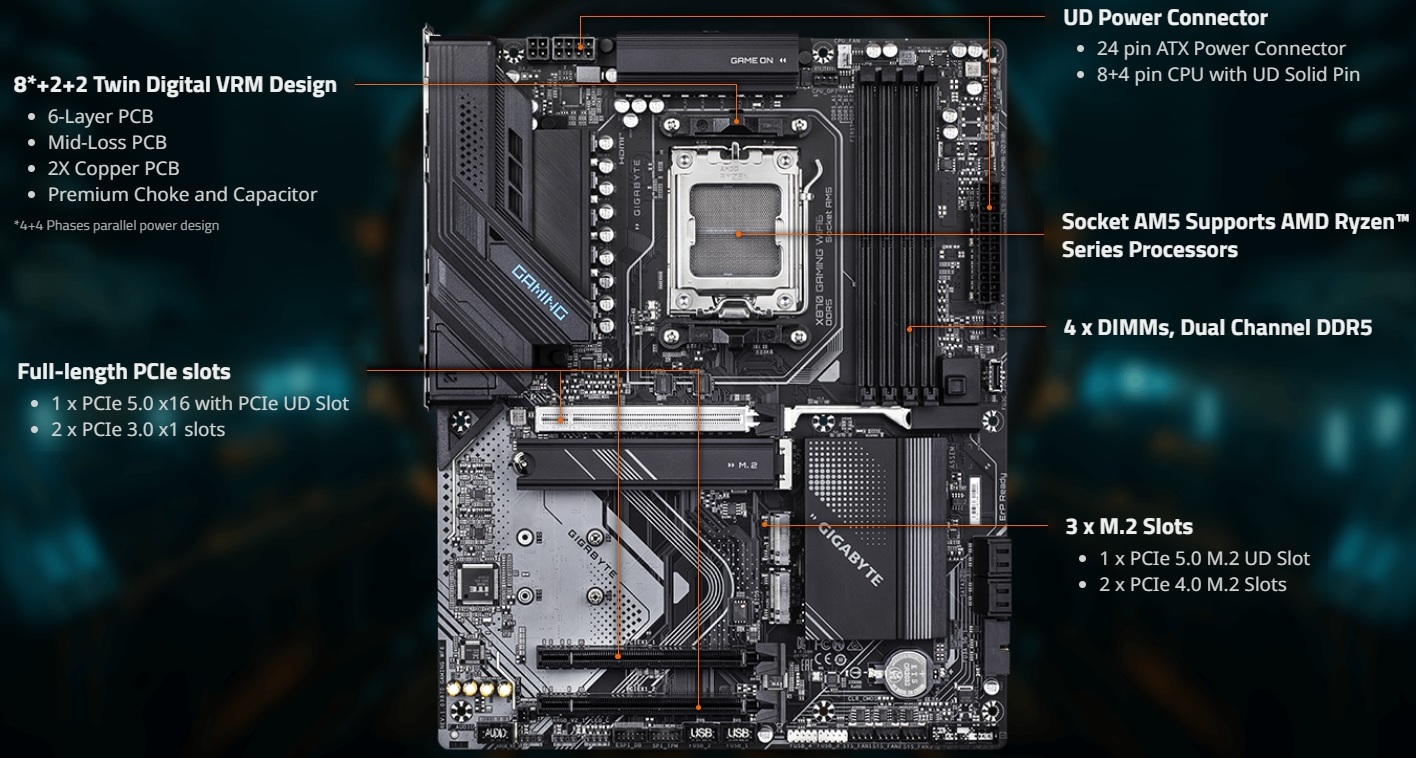

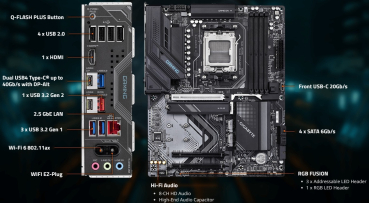

X870 GAMING WIFI6
  • AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
  • Digital twin 8+2+2 phases VRM solution
  • Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click：M.2 heatsinks with screwless design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal：VRM Thermal Armor Advanced  & M.2 Thermal Guard
  • Fast Networking：2.5GbE LAN & Wi-Fi 6 802.11ax
  • Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI

Spezifikation
Prozessor
  • AMD Socket AM5, support for:
  • AMD Ryzen™ 9000 Series Processors/
  • AMD Ryzen™ 8000 Series Processors/
  • AMD Ryzen™ 7000 Series Processors
Chipsatz
  • AMD X870
Arbeitsspeicher
  • Support for DDR5 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Grafik
  • Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
  • 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
  • Support for DisplayPort 1.4 version and HDR.
  • Integrated Graphics Processor with AMD Radeon™ Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • ** Support native HDMI 2.1 TMDS compatible ports.
  • (Graphics specifications may vary depending on CPU support.)
Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
  • Realtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 80MHz wireless standard
Erweiterungssteckplätze
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  • Chipset:
  • 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage Interface
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  • 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
  • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
  • CPU+ASMedia USB4® controller:
  • 2 x USB4® USB Type-C® ports on the back panel
  • CPU:
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 1 x USB 3.2 Gen 1 port on the back panel
  • Chipset+2 USB 2.0 Hubs:
  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
Interne I/O Anschlüsse
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 4 x system fan headers
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 4 x SATA 6Gb/s connectors
  • 3 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 4 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

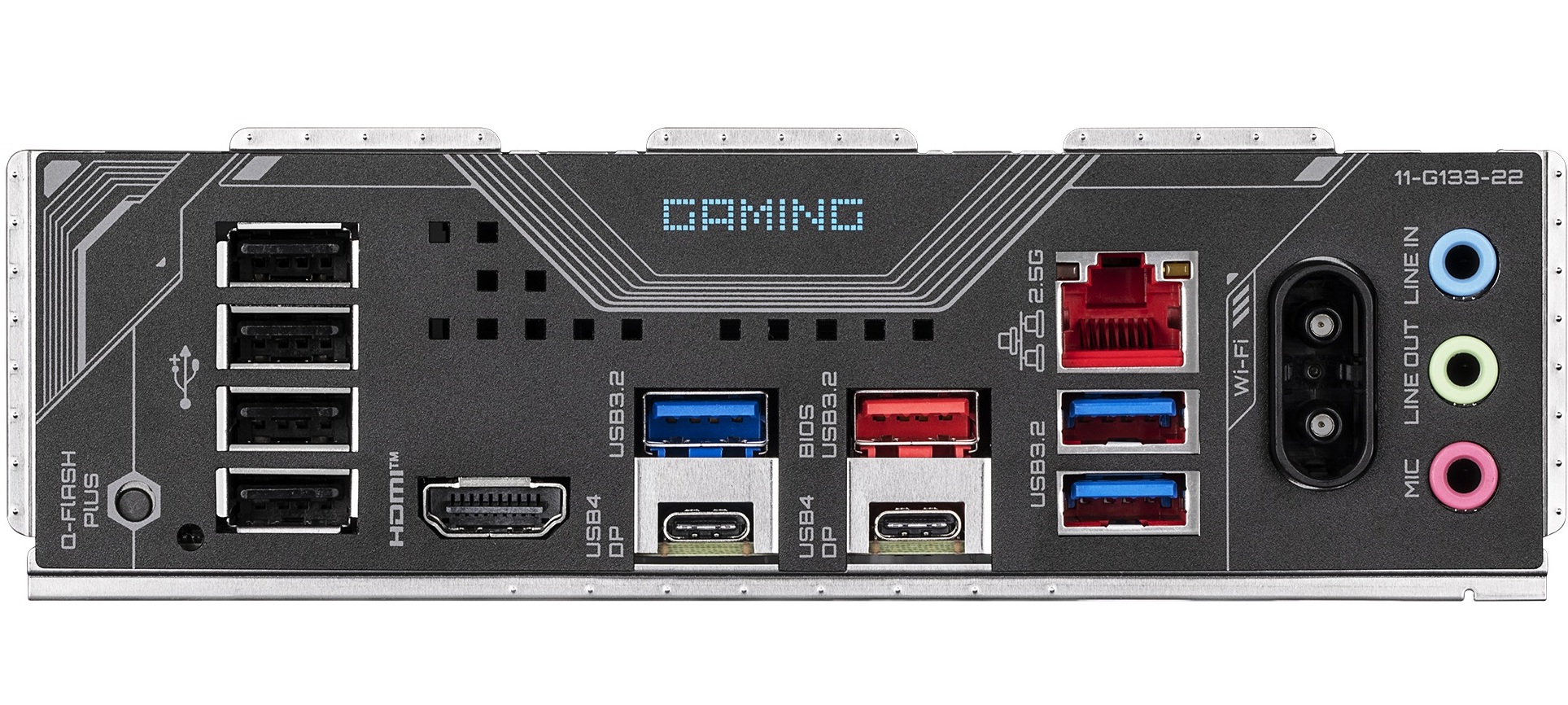

Rückseite I/O Panel
  • 1 x Q-Flash Plus button
  • 2 x SMA antenna connectors (2T2R)
  • 1 x HDMI port (Note)
  • 2 x USB4® USB Type-C® ports (DisplayPort (Note))
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 3 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O
  • iTE® I/O Controller Chip
H/W Überwachung
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Einzigartige Funktionen
  • Support for GIGABYTE Control Center (GCC)
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup
Softwarebeigaben
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Betriebssystem
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
