MSI PRO A620M-E

Lagernd, Lieferung ca 1-3 Tage Lagernd, Lieferung ca 1-3 Tage
89,00 EUR

inkl. 19% MwSt. zzgl. Versand

Finanzierung verfügbar ab 99 EUR bis 5000 EUR Warenkorbwert
Auf den Merkzettel
Frage zum Produkt
Beschreibung

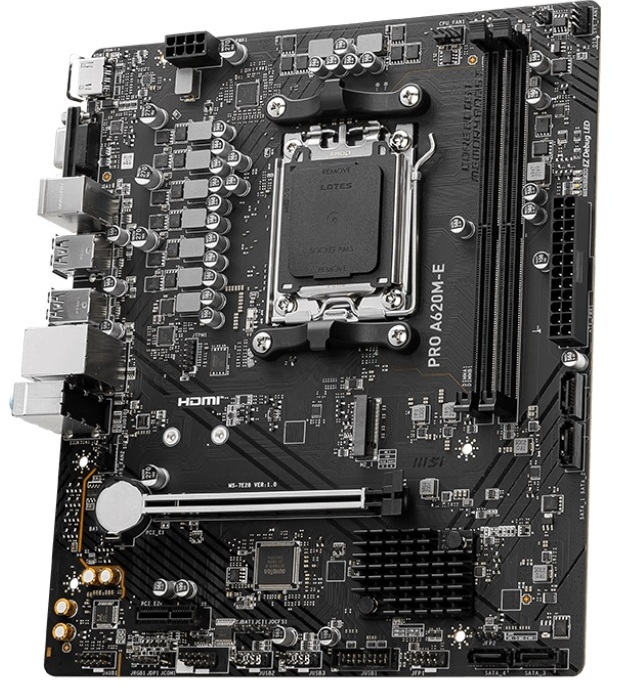

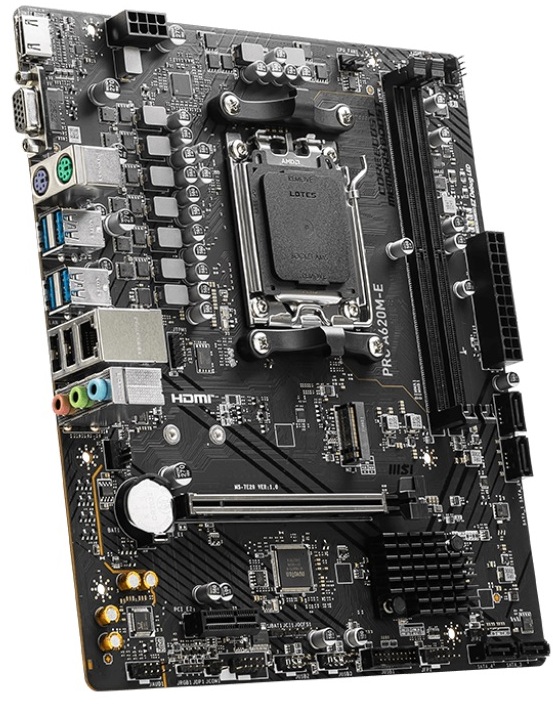

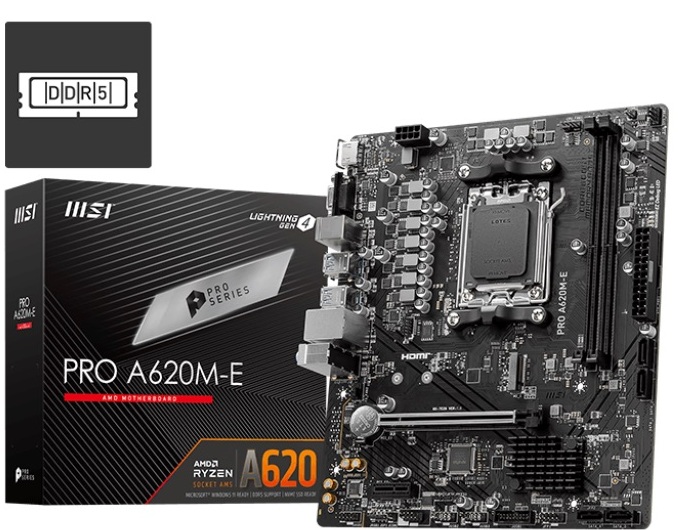

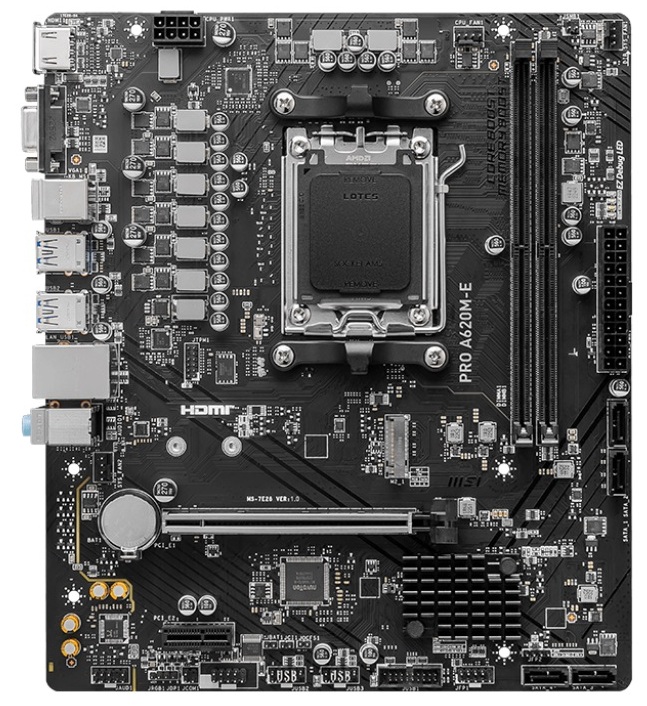

PRO A620M-E

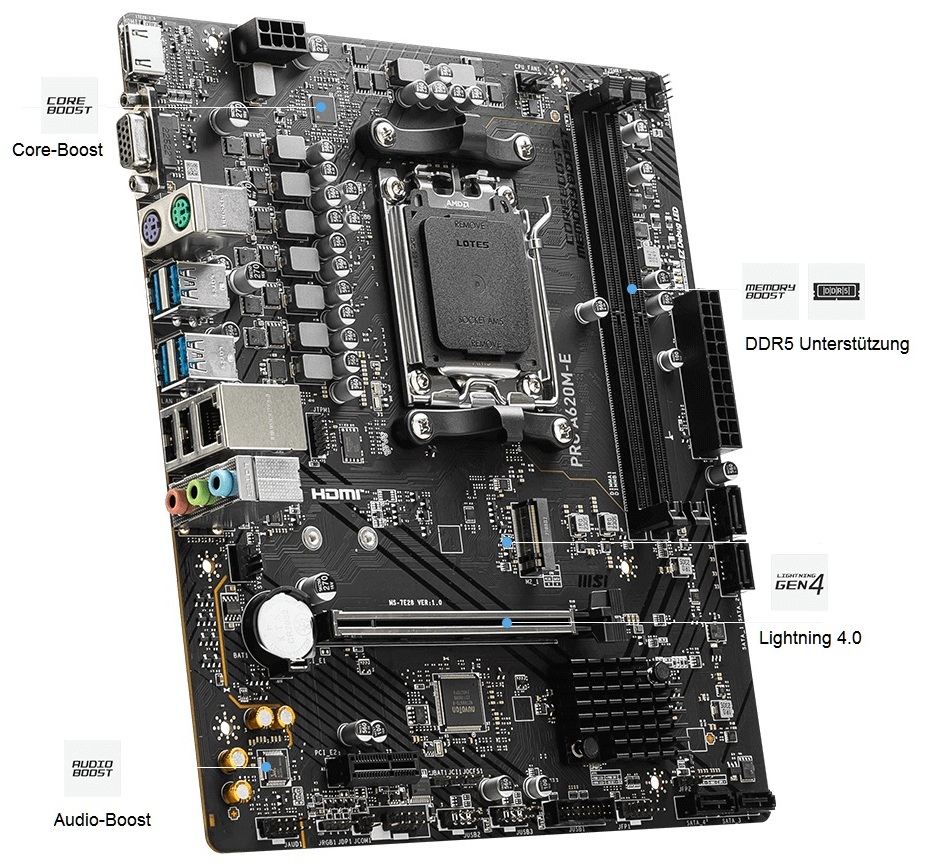

  • Unterstützt AMD Ryzen™ 7000 Desktop Prozessor
  • Unterstützt DDR5 Arbeitsspeicher, Dual-Channel DDR5 6800MHz
  • Core-Boost : Erstklassiges Premium-Layout für maximale Performance
  • Blitzschnelle Leistung: PCI-E der vierten Generation
  • AUDIO-BOOST: Belohne deine Ohren mit Klang in Studioqualität
  • Steel-Armor: Schützt die Grafikkarte vor hoher Belastung und bietet einen hohen EMI-Schutz

SPEZIFIKATIONEN
Chipset
  • AMD A620
CPU
  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Socket AM5
Memory
  • 2x DDR5, Maximum Memory Capacity 96GB
  • Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6800+ MHz
  • 1DPC 2R Max speed up to 6000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports AMD EXPO
Onboard Graphics
  • 1x HDMI™
  • Support HDMITM 2.1, maximum resolution of 4K 60Hz*
  • 1x D-Sub
  • Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 1x PCI-E x16 slot (Qty)
  • 1x PCI-E x1 slot (Qty)
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
  • 1x M.2 (Qty)
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 4x SATA 6G (Qty)
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
LAN
  • Realtek® RTL8111H Gigabit LAN
Audio
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
LED FEATURE
  • 4x EZ Debug LED

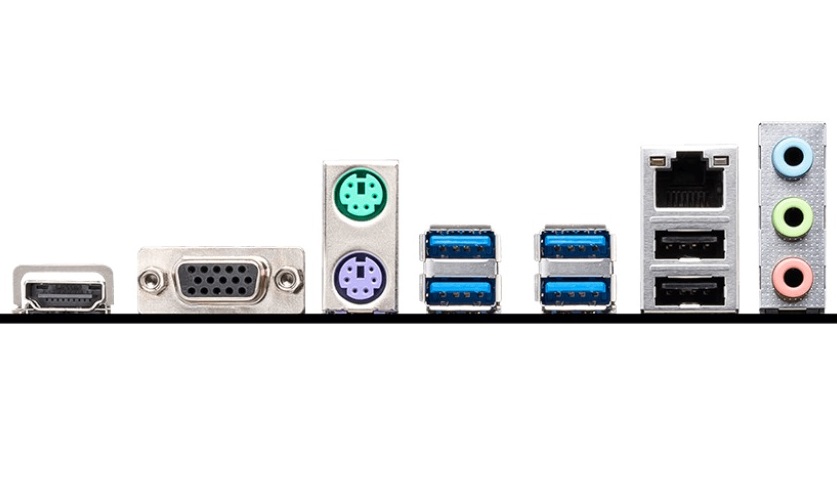

BACK PANEL PORTS
  • 1x HDMI™
  • 1x VGA
  • 1x PS/2 Keyboard
  • 1x PS/2 Mouse
  • 1x LAN port
  • 3x Audio connectors
  • 4x USB 3.2 Gen 1 5Gbps (Type-A)
  • 2x USB 2.0
OPERATING SYSTEM
  • Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
  • mATX
  • 211mmx243.84mm
