MSI PRO B840M-B

Lagernd, Lieferung ca 1-3 Tage Lagernd, Lieferung ca 1-3 Tage
109,00 EUR

inkl. 19% MwSt. zzgl. Versand

Sie können diesen Artikel auch finanzieren!
Informationen zu möglichen Raten
Auf den Merkzettel
Frage zum Produkt
Beschreibung

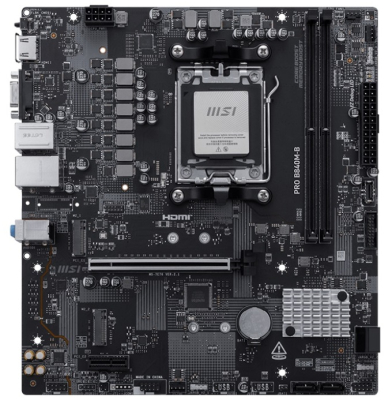

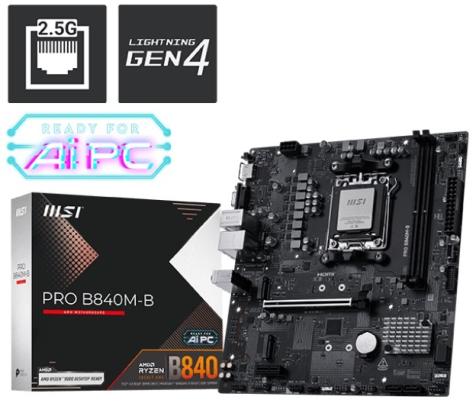

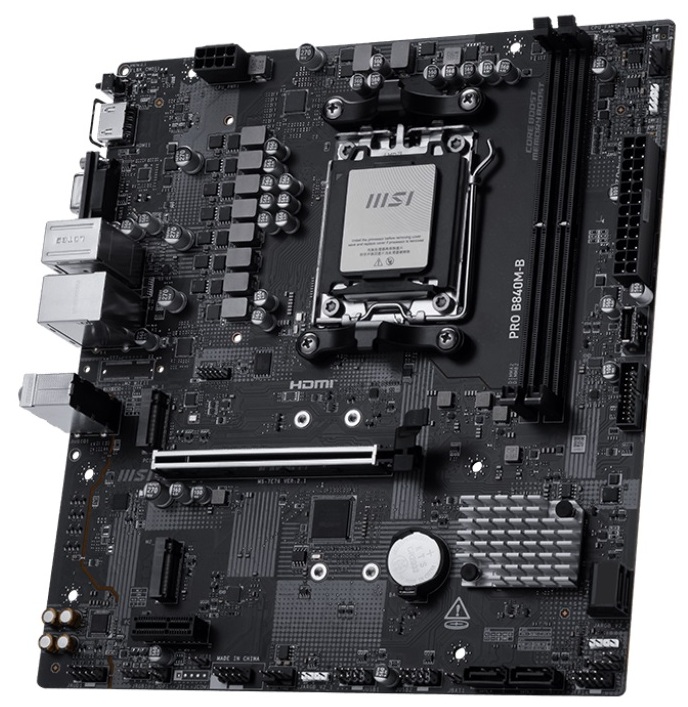

PRO B840M-B

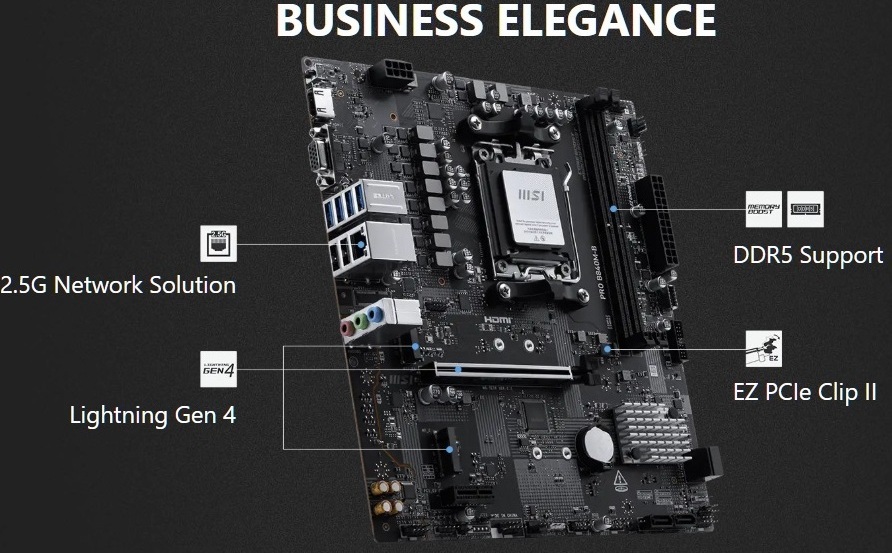

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
  • Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper
  • EZ DIY: EZ M.2 Clip II and EZ PCIe Clip II
  • Lightning Fast Game experience: PCIe 4.0 slot and Lightning Gen 4 x4 M.2
  • 2.5G LAN: the remarkable solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

SPECIFICATIONS
Chipset
  • AMD B840
CPU
  • Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
  • Socket AM5
Memory
  • 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
  • Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  • Ryzen™ 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8000+ MT/s
  • 1DPC 2R Max speed up to 7200+ MT/s
  • Supports AMD POR Speed and JEDEC Speed
  • Supports Memory Overclocking and AMD EXPOTM
  • Supports Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics
  • 1x HDMI™
  • Support HDMITM 2.1, maximum resolution of 4K 60Hz*
  • 1x VGA
  • Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E1 slot
  • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio
  • Realtek® ALC897
  • 7.1-Channel High Definition Audio
Storage
  • 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 4x SATA 6G
  • M2_2 slot
  • Supports up to PCIe 4.0 x4
  • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
LAN
  • Realtek® 8125D 2.5G LAN
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 5Gbps Type C ports
LED FEATURE
  • 4x EZ Debug LED
  • 1x EZ Memory Detection LED

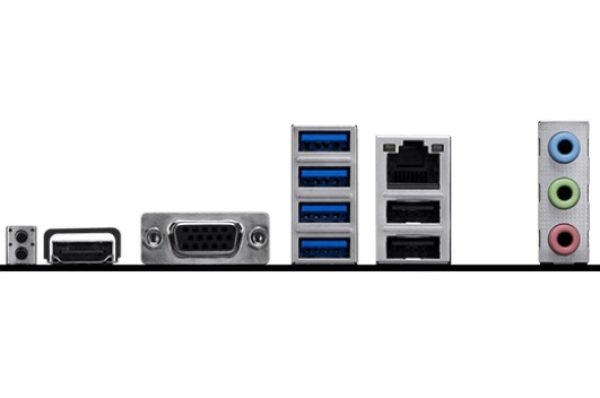

BACK PANEL PORTS
  • 1x Clear CMOS Button
  • 1x Flash BIOS Button
  • 1x HDMI™
  • 1x VGA
  • 1x 2.5G LAN
  • 3x Audio connectors
  • 4x USB 5Gbps Type-A
  • 2x USB 2.0
OPERATING SYSTEM
  • Support for Windows® 11 64-bit
PCB Info
  • mATX
  • 226mmx243.84mm
