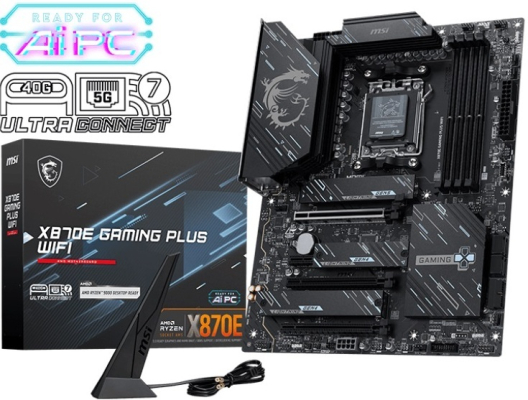

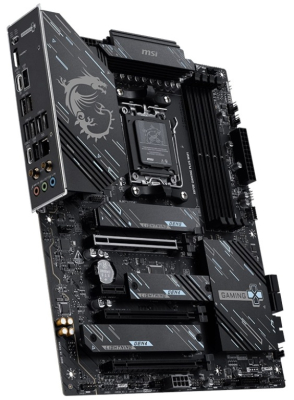

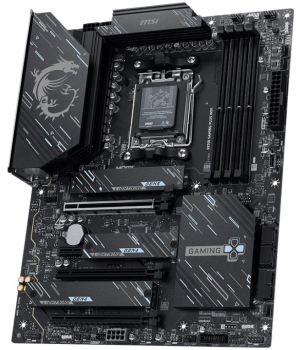

X870E GAMING PLUS WIFI
Das X870E GAMING PLUS WIFI ist mit langlebigen Komponenten ausgestattet, um ein großartiges Spielerlebnis zu bieten. Ausgestattet mit Wi-Fi 7 und 5G LAN, High-Speed-USB4, PCIe 5.0-Lösungen, Supplemental PCIe Power und exklusiven EZ DIY-Funktionen ist er bereit für 24/7 Non-Stop-Gaming mit AMD Ryzen™ Prozessoren der 9000er Serie.
- Unterstützt AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop-PC Prozessoren
- Unterstützt DDR5 Speicher, Dual Channel DDR5 8200+ MT/s (OC)

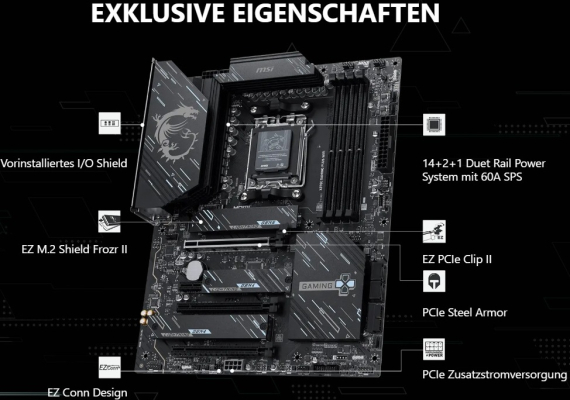

- Ultra Performance: 14+2+1 Duet Rail Power System, duale 8-polige CPU-Stromanschlüsse, Core Boost, Memory Boost, 8 Schichten PCB aus 2oz dickerem Kupfer und Material auf Server-Niveau
- Frozr Guard: Vergrösserter Kühlkörper, MOSFET-Wärmeleitpads mit einem Wert von 7 W/mK, zusätzliche Drosselspulen und EZ M.2 Shield Frozr II
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II und EZ Antenne

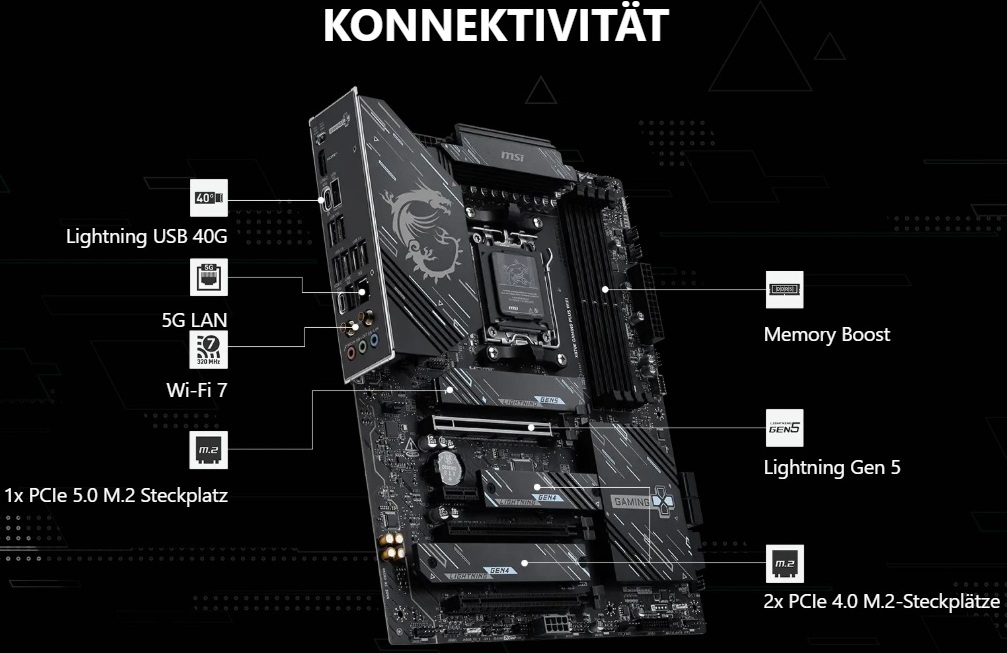

- Blitzschnelles Gaming-Erlebnis: PCIe 5.0 Steckplätze, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 und 5G LAN mit Wi-Fi 7
- Audio Boost : Klangqualität in Studioqualität für ein besonders intensives Gaming-Erlebnis
SPEZIFIKATIONEN
Chipset
CPU
- Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
- Socket AM5
Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
- Ryzen™ 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8200+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 6000+ MT/s
- Supports AMD POR Speed and JEDEC Speed
- Supports Memory Overclocking and AMD EXPOTM
- Supports Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics
- 1x HDMI™
- Support HDMITM 2.1, maximum resolution of 4K 60Hz*
- 1x Type-C DisplayPort
- USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz*
- *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
- 3x PCI-E x16 slot (Qty)
- 1x PCI-E x1 slot (Qty)
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E1 slot
- Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio
- Realtek® ALC897
- 7.1-Channel High Definition Audio
Storage
- 3x M.2 (Qty)
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
- 4x SATA 6G (Qty)
- M2_1 slot
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID
- Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
- 4x USB 2.0 (Rear)
- 6x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 4x USB 5Gbps Type A (Front)
- 2x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Front)
- 1x USB 20Gbps Type C (Rear)
- 1x USB 40Gbps Type C (Rear)
LAN
Internal IO
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x Power Connector(PCIE_PWR 8pin)
- 1x CPU Fan
- 1x PUMP_SYS Fan
- 6x System Fan
- 1x ARGB+FAN Header (JAF_1)
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Tuning Controller connector(JDASH)
- 3x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 6x USB 2.0 ports
- 4x USB 5Gbps Type A ports
- 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
- Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth® 5.4, MLO, 4KQAM
LED FEATURE
- 4x EZ Debug LED
- 1x EZ Memory Detection LED

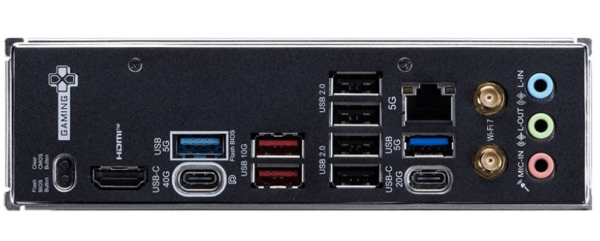

BACK PANEL PORTS
- 1x Clear CMOS Button
- 1x Flash BIOS Button
- 1x 5G LAN
- 2x Wi-Fi / Bluetooth
- 3x Audio connectors
- 1x HDMI™
- 1x USB 40Gbps Type-C
- 1x USB 20Gbps Type-C
- 2x USB 5Gbps Type-A
- 3x USB 10Gbps Type-A
- 4x USB 2.0
OPERATING SYSTEM
- Support for Windows® 11 64-bit
