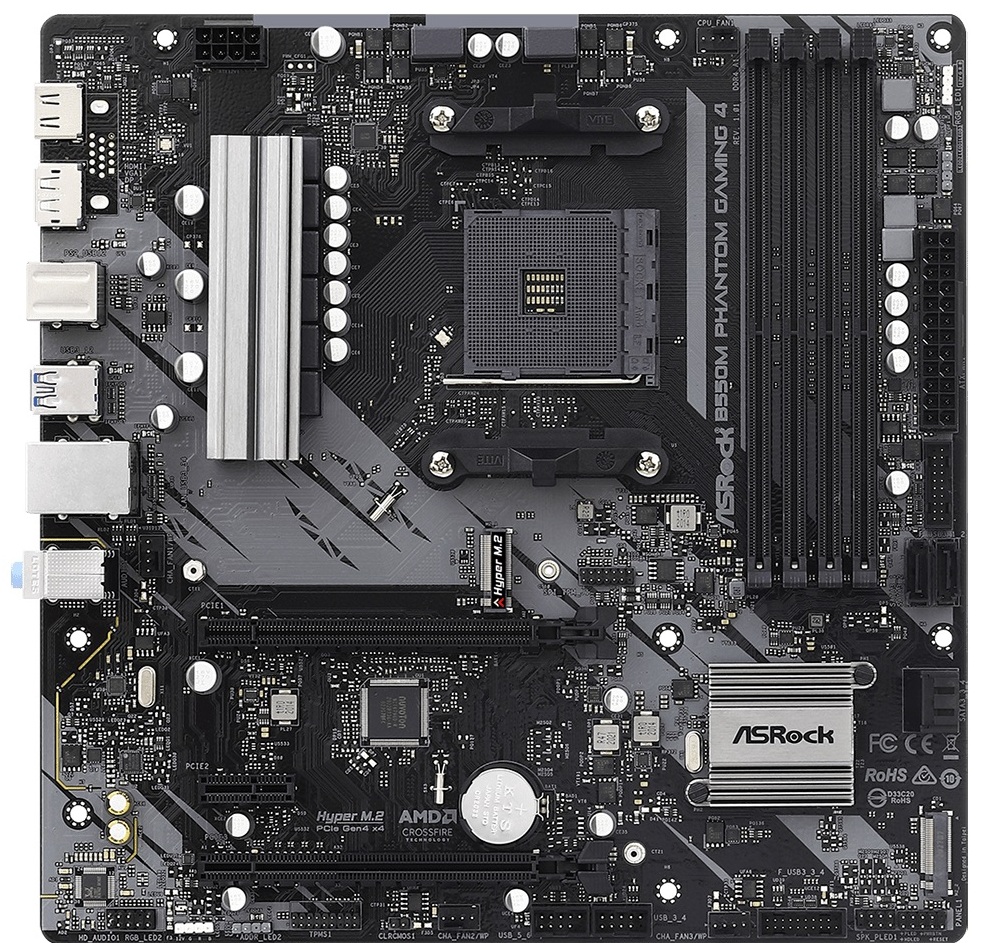

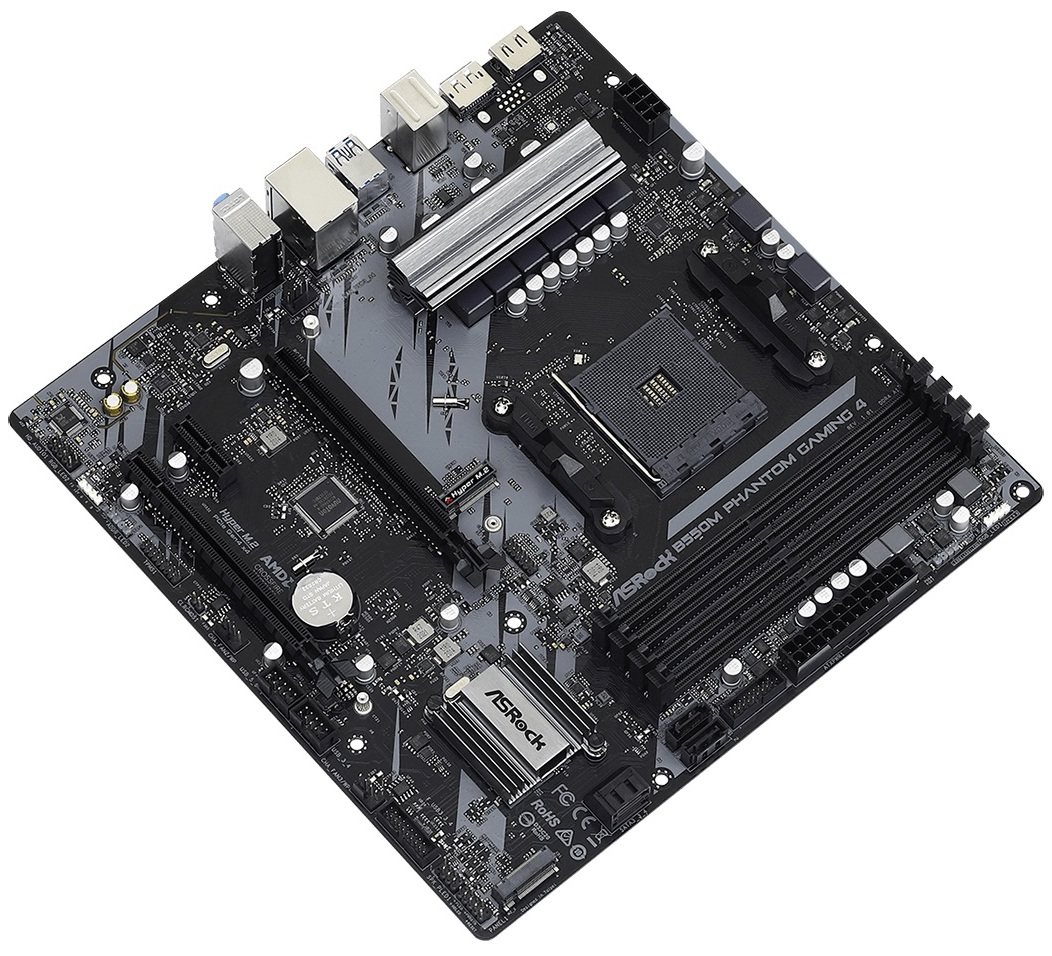

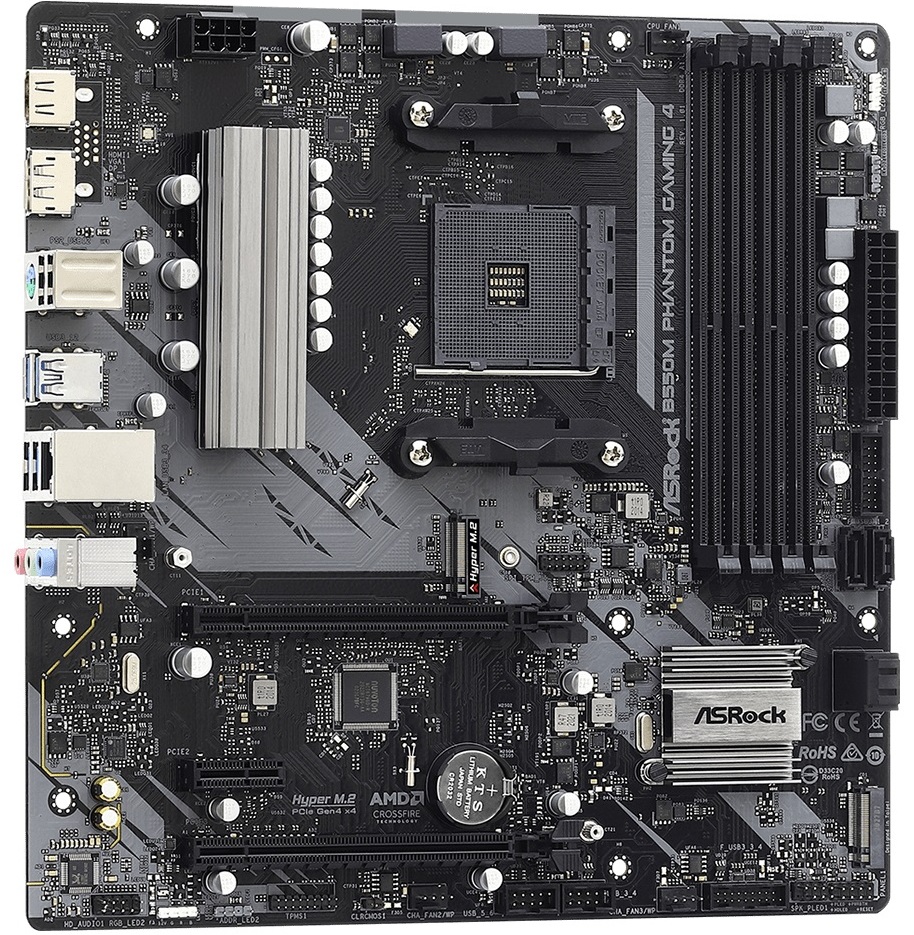

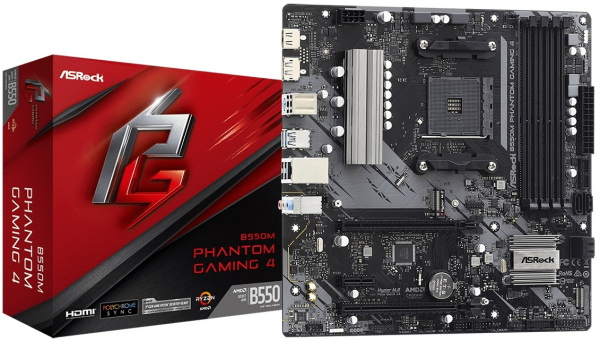

ASRock B550M Phantom Gaming 4
ASRock B550M Phantom Gaming 4
-10%
ASRock B550M Phantom Gaming 4
Art.Nr.:
Lieferzeit:
Lagernd, Lieferung ca 1-3 Tage
Bisher 99,00 EUR
Jetzt 89,00 EUR
inkl. 19% MwSt. zzgl.
Versand
In den Warenkorb
Finanzierung verfügbar ab 99 EUR bis 5000 EUR Warenkorbwert
Auf den Merkzettel
Frage zum Produkt
Beschreibung
Hersteller/EU Verantwortliche Person
Beschreibung
B550M Phantom G
Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
8 Power Phase Design, Digi Power
Supports DDR4 4733+ (OC)
1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Supports AMD CrossFireX™
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
4 x SATA3, 1 x Hyper M.2(PCIe Gen4x4), 1 x M.2(PCIe Gen3x2 & SATA3)
8 x USB 3.2 Gen1 (4 Front, 4 Rear)
6 x USB 2.0 (4 Front, 2 Rear)
Spezifikationen
Einzigartige Features
ASRock Super Alloy
Premium 50A Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
2oz Copper PCB
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Digi Power design
8 Power Phase design
Chipsatz
AMD B550
Arbeitsspeicher
Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
Supports Extreme Speicherprofile (XMP) memory modules
15μ Gold Contact in DIMM Slots
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 5.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3 support
CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, Voltage Multi-adjustment
Grafik
Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU
DirectX 12, Pixel Shader 5.0
Standardmäßig beträgt der geteilte Speicher 2 GB. Maximal sind 16 GB geteilter Speicher möglich.
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 2.1 with max. Auflösung up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with max. Auflösung up to 5K (5120x2880)@120Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.1
Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports***
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
Supports Microsoft® PlayReady
Audio
7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
Supports Surge Protection
LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Steckplätze
1x PCIe 4.0 x16
1x PCIe 3.0 x16 (x4)
1x PCIe 3.0 x1
Supports AMD Quad CrossFireX™ and CrossFireX™
Speicherplatz
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)
1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
Anschluss
1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

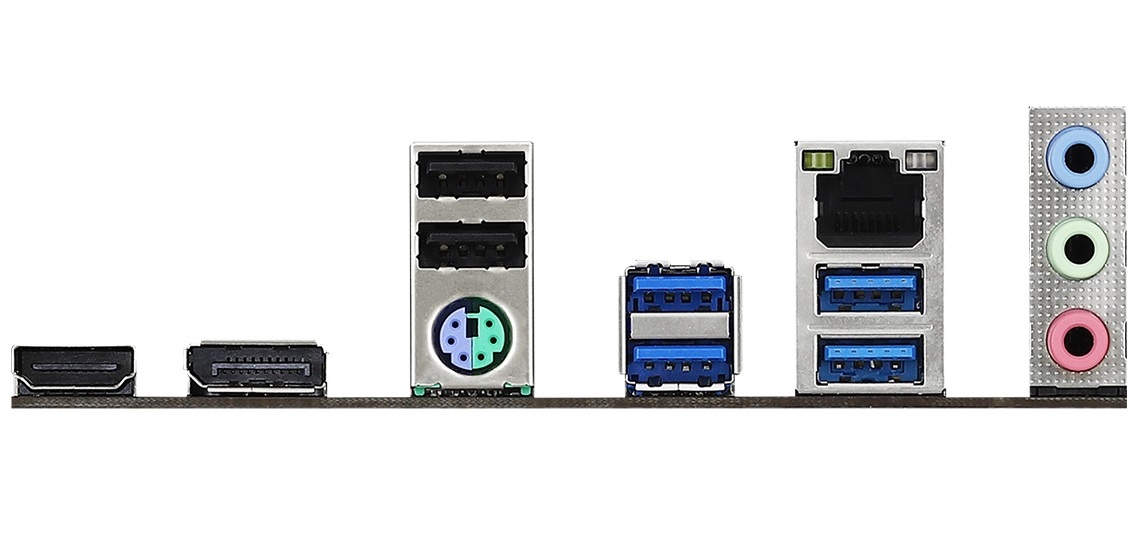

Blende
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Polychrome SYNC
UEFI
ASRock Full HD UEFI
ASRock Sofort-Flash
Produktzubehör
I/O Shield
2 x SATA Data Cables
2 x Screws for M.2 Sockets
Hardware überwachung
Temperature Sensing: CPU, Chassis/Water Pump Fans
Fan Tachometer: CPU, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, +1.8V
Formfaktor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Solid Capacitor design
2oz Copper PCB
Betriebssystem
Microsoft® Windows® 10 64-bit / 11 64-bit
Zertifizierungen
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
