ASRock H510M-HDV/M.2 SE

Lagernd, Lieferung ca 1-3 Tage Lagernd, Lieferung ca 1-3 Tage
79,00 EUR

inkl. 19% MwSt. zzgl. Versand

Finanzierung verfügbar ab 99 EUR bis 5000 EUR Warenkorbwert
Auf den Merkzettel
Frage zum Produkt
Beschreibung
H510M-HDV/M.2 SE
  • Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
  • 5 Power Phase Design
  • Supports DDR4 3200 MHz
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN
  • Supports ASRock Auto-Treiber-Installer

Spezifikationen
Einzigartige Features
  • Solide Haltbarkeit
  • 5 Power Phase
  • EZ-Update
  • ASRock Auto-Treiber-Installer
CPU
  • Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
  • Supports Intel® Turbo Boost Max 3.0 Technology
Chipsatz
  • Intel® H470
Arbeitsspeicher
  • Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
  • Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 64GB
  • Supports Intel® Extreme Speicherprofile (XMP) 2.0
  • 15μ Gold Contact in DIMM Slots
BIOS
  • 128Mb AMI UEFI Legal BIOS with GUI support
Grafik
  • 1 x HDMI support HDMI 2.0 /1.4, HDCP 2.3 and max. Auflösung up to 4K 60Hz
  • 1 x DVI-D, supports HDCP 2.3 and max. Auflösung up to Full HD (1920x1200) 60Hz
  • 1 x D-Sub, supports max. Auflösung up to Full HD (1920x1200) 60Hz
  • Intel® UHD Graphics Built-in Visuals und die VGA-Ausgänge können nur bei der Verwendung von CPUs mit integrierter GPU-Einheit genutzt werden.
Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
  • Gigabit LAN 10/100/1000 Mb/s
  • Realtek 8111H
Steckplätze
  • Intel® 11th Gen & 10th Gen Processors:
  • 1 x PCIe 4.0 x16 Slot (PCIE1)
  • Intel® 11th Gen Processors support PCIe 4.0 x16
  • Intel® 10th Gen Processors support PCIe 3.0 x16
  • Intel® H470 Chipset:
  • 1 x PCIe 3.0 x1 Slot (PCIE2)
Speicherplatz
  • Chipset:
  • 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
  • 4 x SATA3 6.0 Gb/s Connectors
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Speichergeräte
USB
  • 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)
Anschluss
  • 1 x COM Port Header
  • 1 x SPI TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin)
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

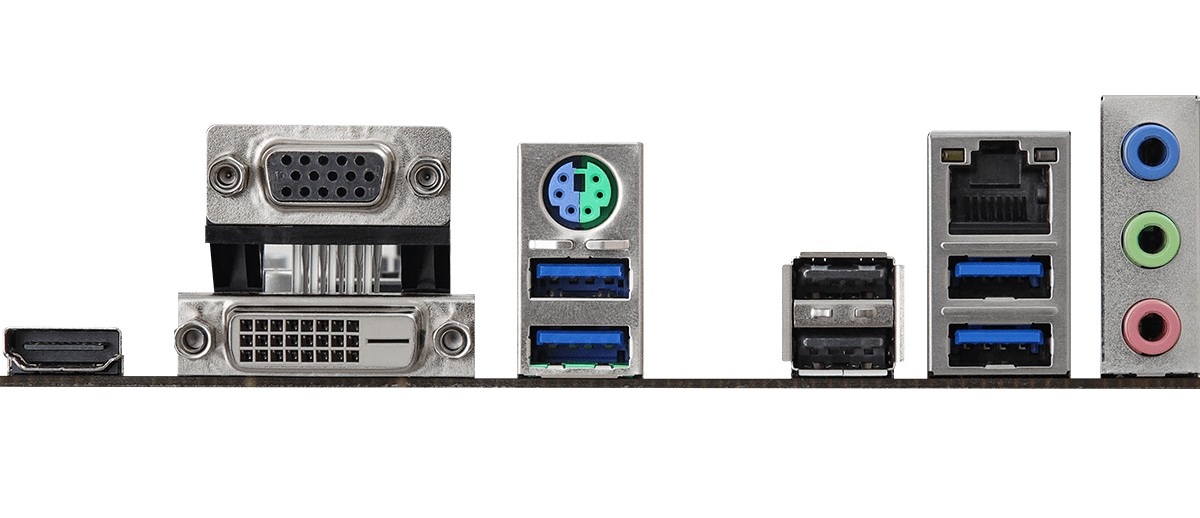

Blende
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 2 x USB 2.0 Ports
  • 4 x USB 3.2 Gen1 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock XFast LAN
UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto-Treiber-Installer
  • ASRock Sofort-Flash
  • ASRock Internet Flash
  • ASRock Easy RAID Installer
Produktzubehör
  • 1 x Benutzerhandbuch
  • 1 x I/O Shield
  • 2 x SATA Data Cables
  • 1 x Screw for M.2 Socket
Formfaktor
  • Micro ATX Form Factor: 9.1-in x 7.8-in, 23.1 cm x 19.8 cm
Betriebssystem
  • Microsoft® Windows® 10 64-bit / 11 64-bit
Zertifizierungen
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
