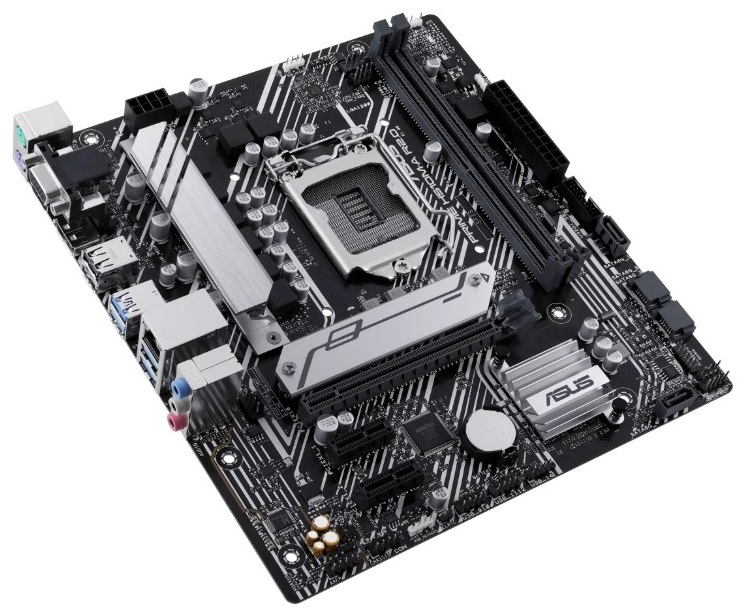

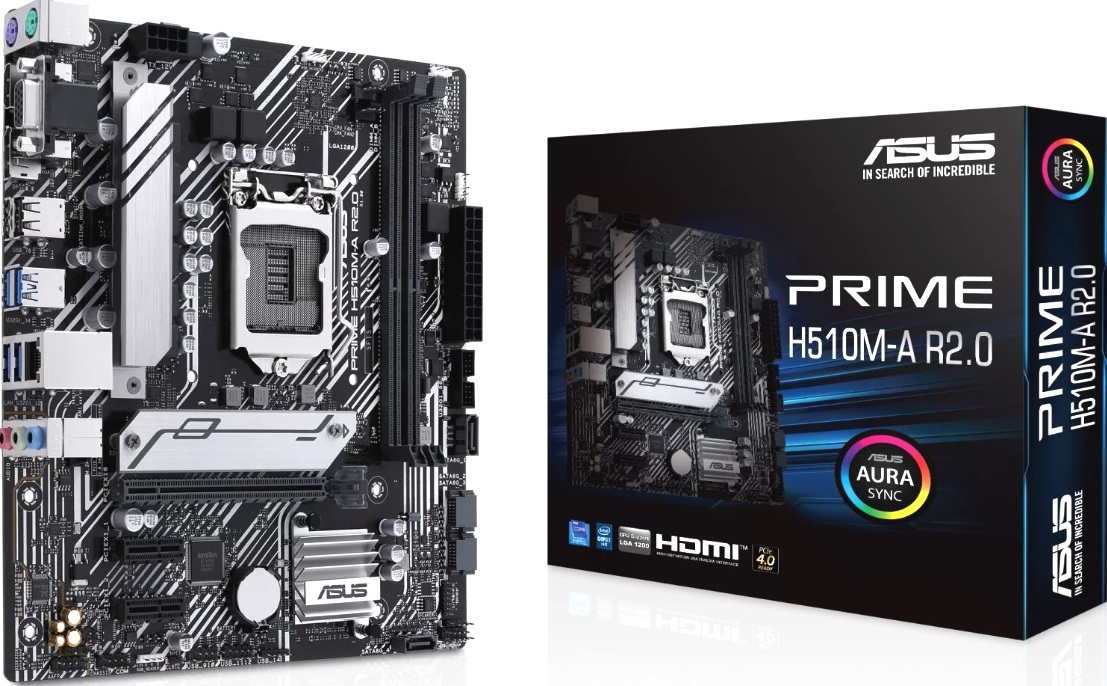

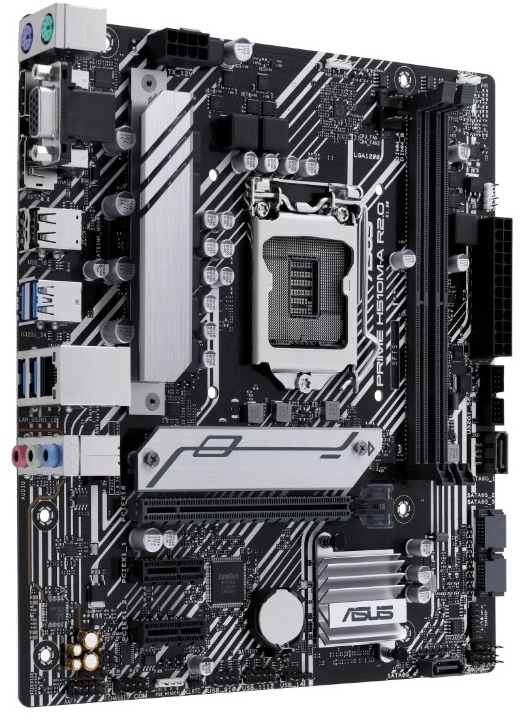

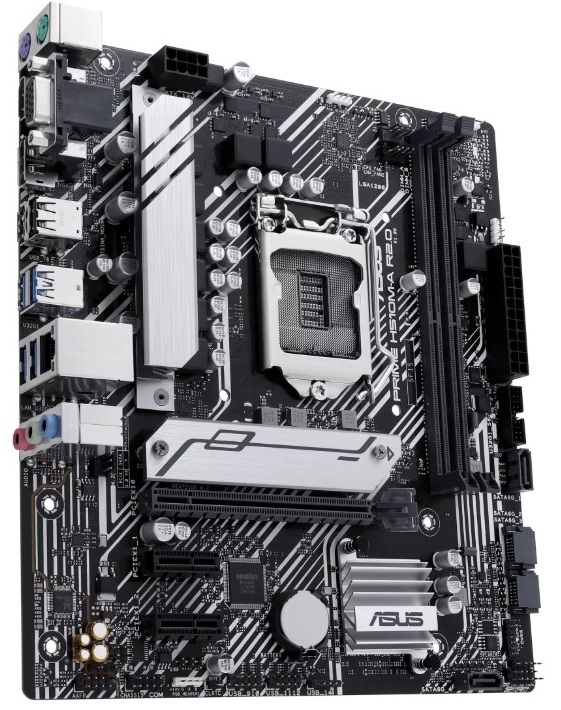

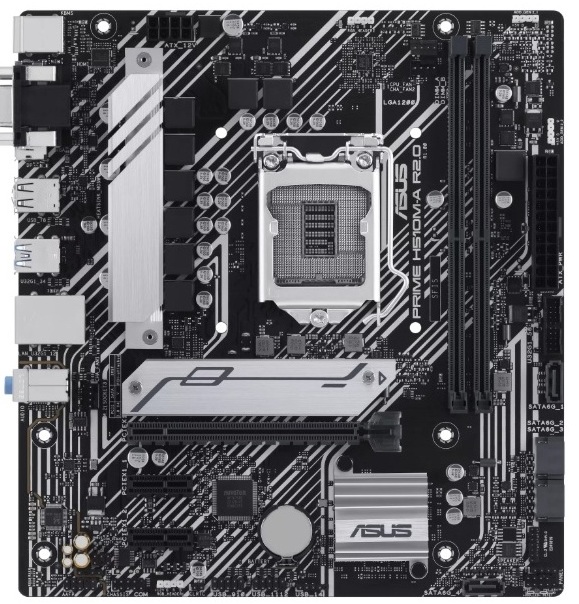

PRIME H510M-A R2.0
Die Motherboards der ASUS Prime Serie wurden von Experten entwickelt, um das volle Potenzial der 11. und 10. Generation der Intel® Prozessoren zu entfesseln. Mit einem robusten Leistungsdesign, umfassenden Kühllösungen und intelligenten Tuning-Optionen bietet der PRIME H510M-A R2.0 alltäglichen Nutzern und DIY-PC-Buildern eine Reihe von Leistungstuning-Optionen über intuitive Software- und Firmware-Funktionen.
Übersicht

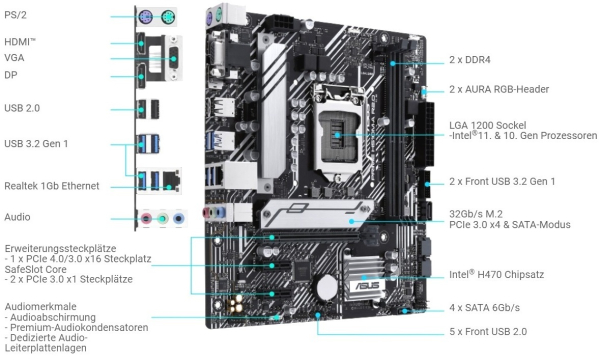

Intel® H470 (LGA 1200) mATX Mainboard mit PCIe 4.0, 32Gbps M.2 Slot, DisplayPort/HDMI™/VGA, USB 3.2 Gen 1 Ports, SATA 6 Gbps, Aura Addressable Gen 2 Header, Aura Sync, Armoury Crate, Q-LED Core
- Intel® LGA 1200 Sockel: Bereit für Intel® Prozessoren der 11. und 10. Generation
- Umfassende Kühlung: VRM-Kühlkörper, M.2-Kühlkörper, PCH-Kühlkörper und Fan Xpert 2+
- Ultraschnelle Konnektivität: 32Gbps M.2 Steckplatz, Realtek 1Gb Ethernet und USB 3.2 Gen 1
- Aura Sync RGB-Beleuchtung Integrierte adressierbare Gen 2-Header und Aura-RGB-Header für RGB-LED-Streifen, die sich leicht mit Aura-Sync-fähiger Hardware synchronisieren lassen
- 5X Protection III: Mehrere Hardware-Sicherungen für Rundumschutz
Spezifikationen
Model
CPU
- Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron®
- Processors*
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- *Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Memory
- 2 x DIMM, Max. 64GB
- DDR4 3200(OC)/ 3000(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
Graphics
- 1 x DisplayPort 1.4
- 1 x VGA
- 1 x HDMI 2.1
- *Graphics specifications may vary between CPU types.
Expansion Slots
- Intel® 11th & 10th Gen Processors
- 1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel® 10th Gen processors support PCIe 3.0 x16
- Intel® H470 Chipset
- 2 x PCIe 3.0 x1 slots
Storage
- Total supports 1 x M.2 slot and 4 x SATA6Gb/s ports
- Intel® H470 Chipset
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
Ethernet
USB
- Rear USB (Total 6 ports)
- 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- 1 x USB 2.0 header support 1 additional USB 2.0 port
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

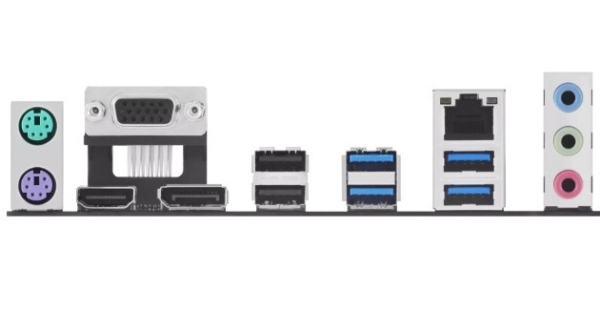

Back Panel I/O Ports
- 4 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
- 2 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x VGA port
- 1 x HDMI™ port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard (purple) port
- 1 x PS/2 Mouse (green) port
Internal I/O Connectors
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- 1 x USB 2.0 header support 1 additional USB 2.0 port
- Miscellaneous
- 2 x AURA Addressable Gen 2 headers
- 2 x AURA RGB headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Special Features
- ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
- ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
- ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
- AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software Features
- ASUS Exclusive Software
- Armoury Crate
- AURA Creator
- AURA Sync
- AI Suite 3
- Performance And Power Saving Utility
- TurboV EVO
- EPU
- DIGI+ VRM
- Fan Xpert 2+
- EZ update
- ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR
- UEFI BIOS
- ASUS
- EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
Manageability

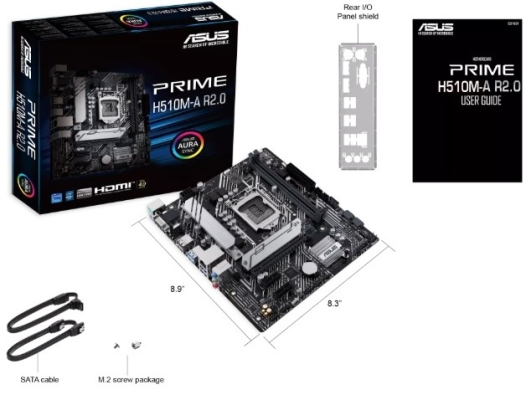

Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O Shield
- 1 x M.2 SSD screw package
- Documentation
- 1 x User guide
Operating System
Form Factor
- mATX Form Factor
- 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
