GIGABYTE H810M K

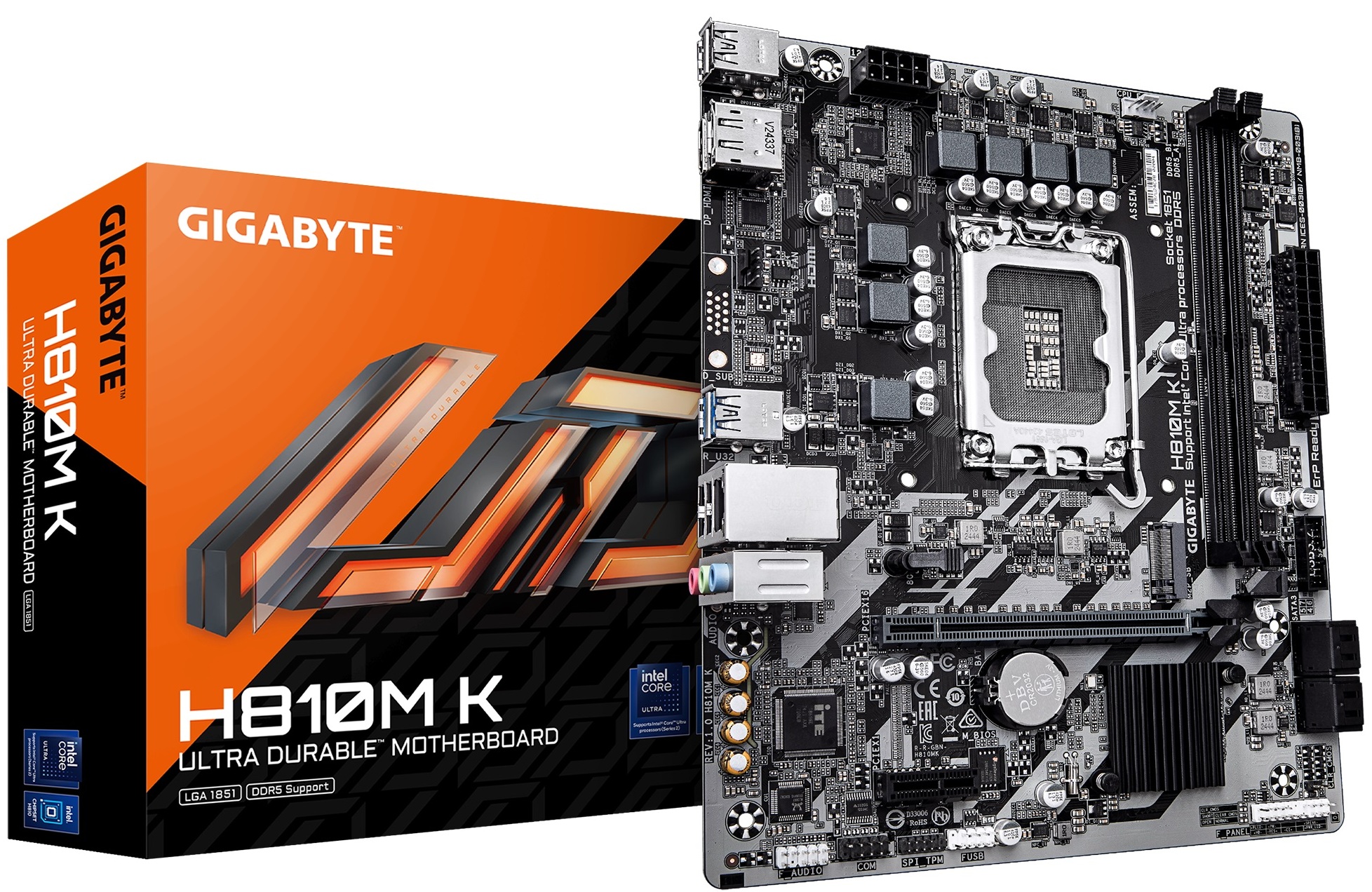

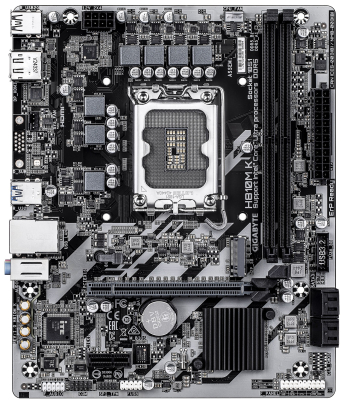

GIGABYTE H810M K
GIGABYTE H810M K
Art.Nr.:
Lieferzeit:
Lagernd, Lieferung ca 1-3 Tage
89,00 EUR
inkl. 19% MwSt. zzgl.
Versand
In den Warenkorb
Finanzierung verfügbar ab 99 EUR bis 5000 EUR Warenkorbwert
Auf den Merkzettel
Frage zum Produkt
Beschreibung
Hersteller/EU Verantwortliche Person
Beschreibung

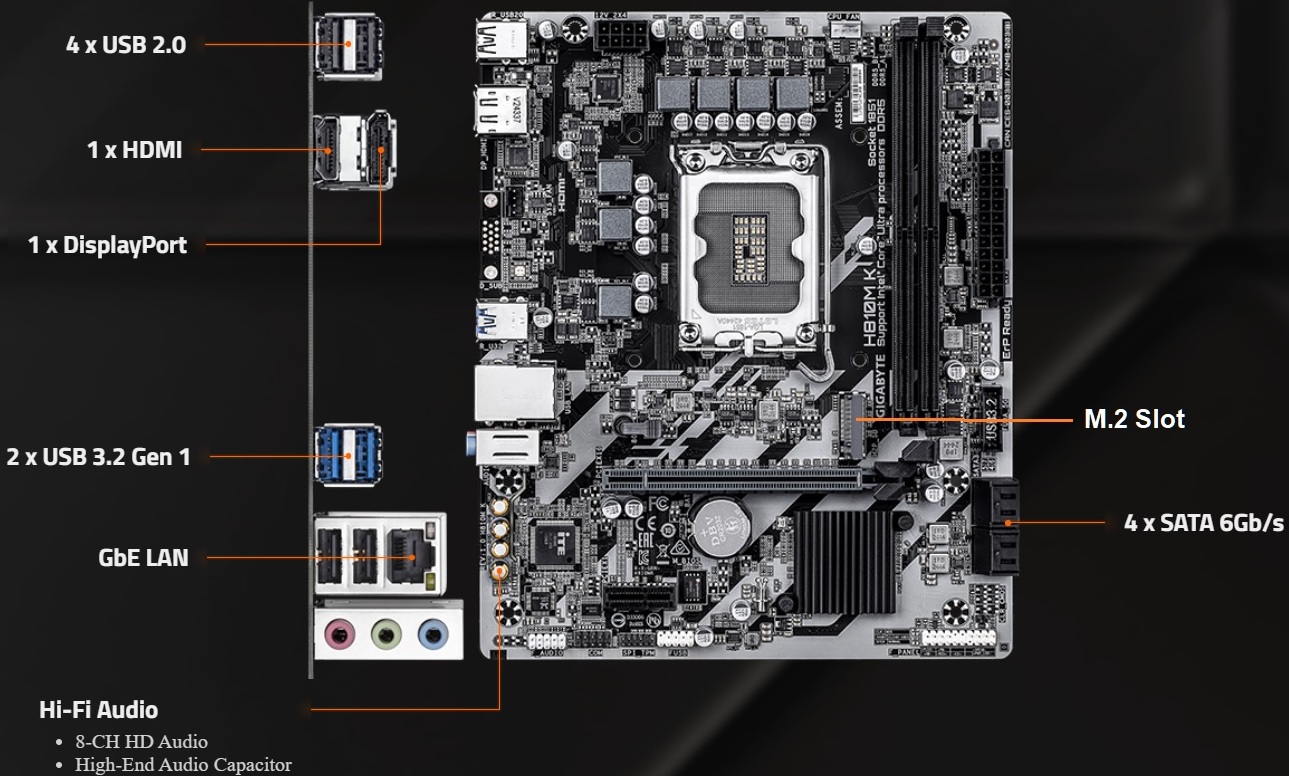

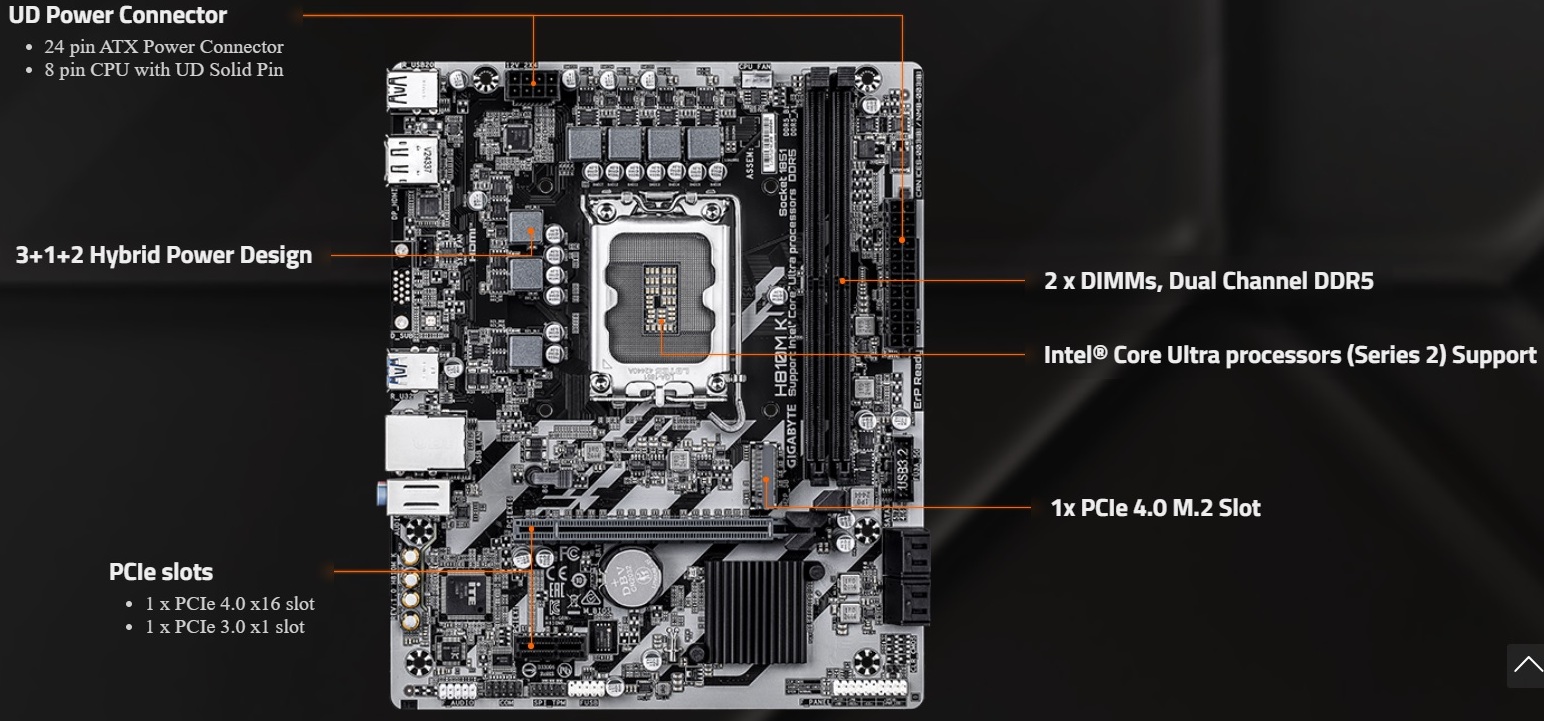

H810M K
Supports Intel® Core™ Ultra processors (Series 2)
Hybrid 3+1+2 phases VRM solution
EZ-Latch: PCIe x16 Slot with Quick Release Design
Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
Fast Networking: GbE LAN
Extended Connectivity: HDMI, DisplayPort
Spezifikation
Prozessor
LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipsatz
Intel® H810 Express Chipset
Arbeitsspeicher
Support for DDR5 6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Grafik
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz
Support for DisplayPort 2.1 version.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Erweiterungssteckplätze
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

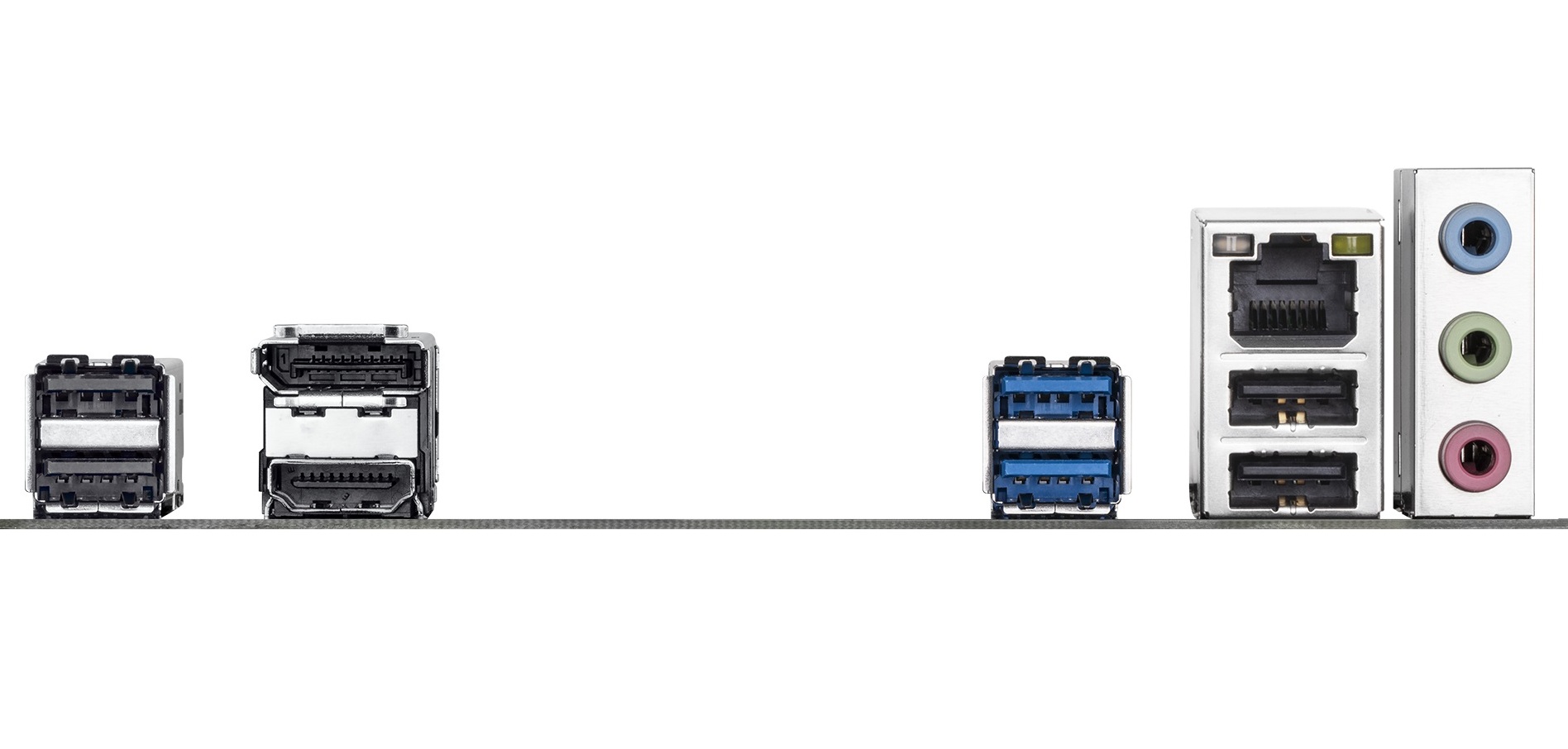

Rückseite I/O Panel
1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O
iTE® I/O Controller Chip
H/W Überwachung
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Einzigartige Funktionen
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Smart Backup
Softwarebeigaben
Norton® Internet Security (OEM version)
LAN bandwidth management software
Betriebssystem
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm
