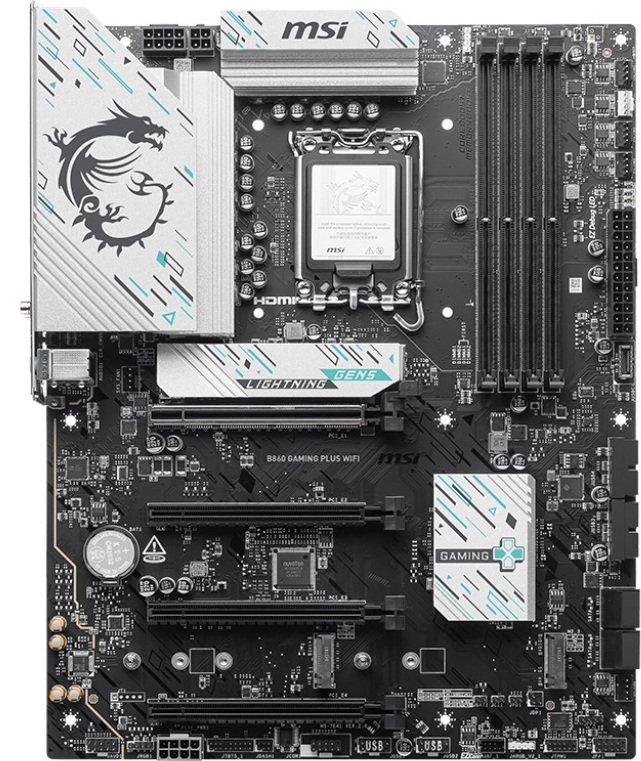

B860 GAMING PLUS WIFI
Das B860 GAMING PLUS WIFI wurde entwickelt, um umfassende Konnektivität, vielseitige Tools und eine Premium-WLAN-Lösung für Gamer, die ein umfassendes Erlebnis suchen. Mit Thunderbolt 4-Anschluss, Full-Speed-Wi-Fi 7, 5G LAN, PCIe 5.0-Lösung, Supplemental PCIe Power und exklusiven EZ DIY-Funktionen ist es für 24/7-Nonstop-Gaming optimiert und für Intel Core Ultra-Prozessoren.
ÜBERSICHT
- Unterstützt® Core™ Ultra Prozessoren (Serie 2) für LGA 1851 Sockel
- Unterstützt DDR5-Speicher, Dual Channel DDR5 8600+ MT/s (OC)
- Ultra Connect: Thunderbolt™ 4-Anschluss, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution – die neueste Lösung für den professionellen und multimedialen Einsatz, die sichere, stabile und schnelle Netzwerk- und Datenübertragung bietet
- Ultra Performance: 12+1+1+1 Duet Rail Power System mit P-PAK, 8+4-pin CPU-Stromanschlüssen, Core Boost, Memory Boost und 6 Schichten Serverniveau PCB

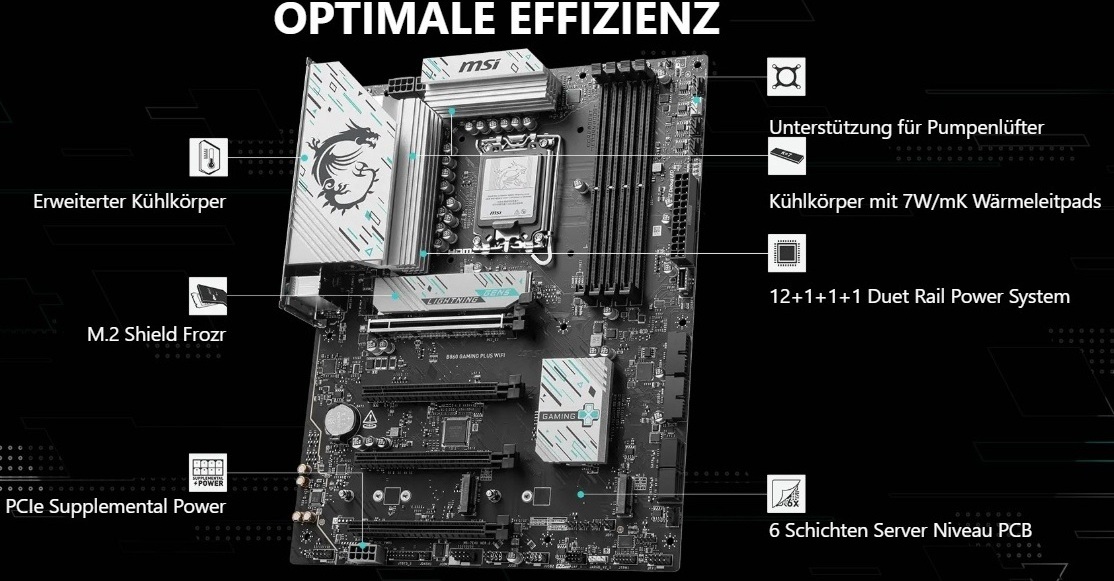

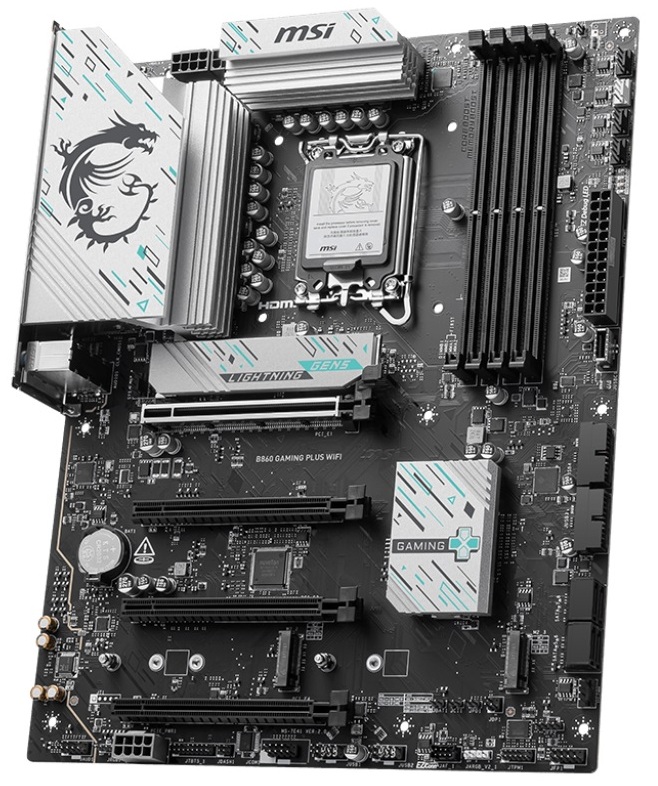

- Frozr Guard: Erweiterter Kühlkörper, MOSFET-Wärmeleitpads mit 7 W/mK, zusätzliche Drossel-Wärmeleitpads und EZ M.2 Shield Frozr II, ausgelegt für Hochleistungssysteme und unterbrechungsfreie Nutzung

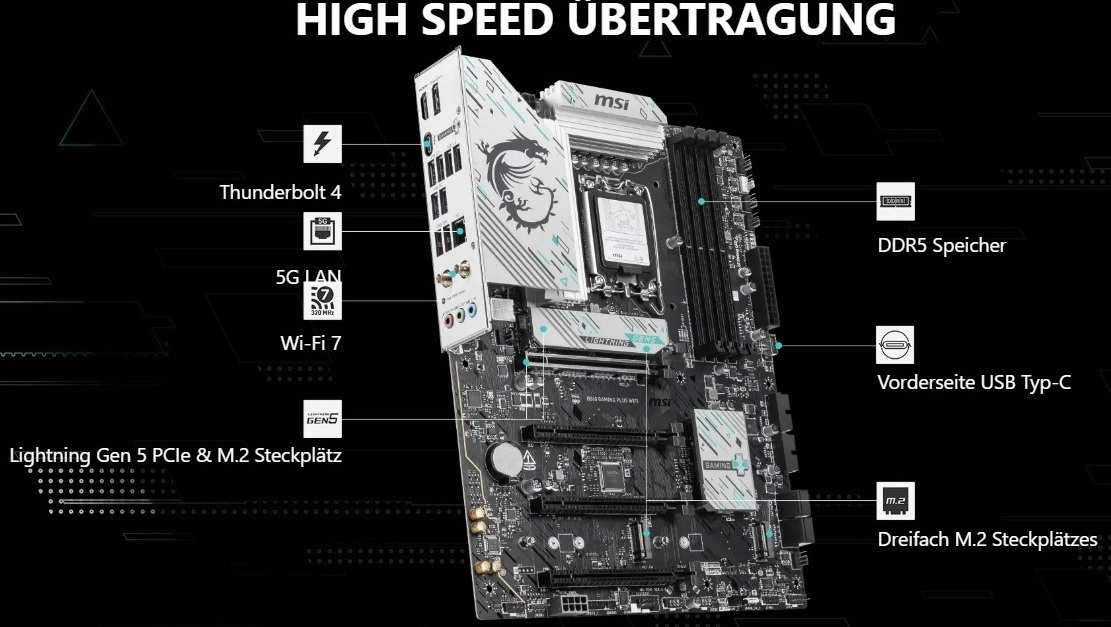

- Blitzschnelles Spielerlebnis:: PCIe 5.0 Steckplätze, Lightning Gen 5 x4 M.2, Front USB Type-C

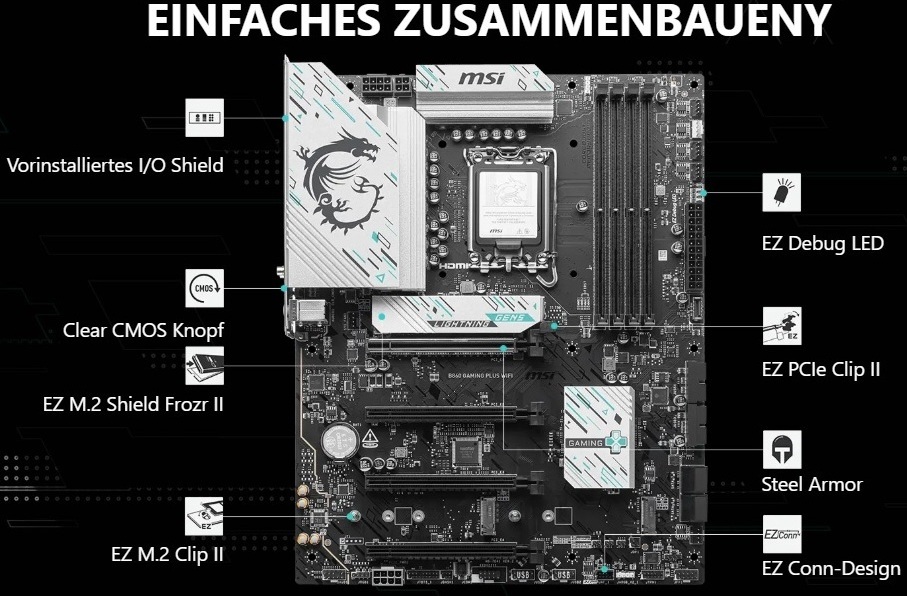

- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II und EZ Antenne
- Audio Boost: Studioqualität für ein immersives Klangerlebnis im Gaming
SPEZIFIKATIONEN
Chipset
CPU
- Supports Intel® Core™ Ultra Processors (Series 2)
- LGA 1851
Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
- Max. overclocking frequency:
- 1DPC 1R Max speed up to 8800+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 5600+ MT/s
- Supports Intel® POR Speed and JEDEC Speed
- Supports Memory Overclocking and Intel® XMP 3.0
- Supports Dual-Controller Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM
Onboard Graphics
- 1x HDMI™
- Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
- 1x DisplayPort
- Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
- 1x Type-C DisplayPort
- Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
- *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
- 4x PCI-E x16 slot (Qty)
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
Storage
- 3x M.2 (Qty)
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
- 4x SATA 6G (Qty)
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Onboard Thunderbolt
- 1x Thunderbolt4 ports (Rear)
- Supports up to 40Gbps transfer rate with Thunderbolt devices
- Supports up to 20Gbps transfer rate with USB4 devices
- Supports up to 10Gbps transfer rate with USB 3.2 devices
- Supports up to 5V/3A,15W power charging
- Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
- Supports up to 8K display
USB
- 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 4x USB 5Gbps Type A (Front)
- 2x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Front)
LAN
- Intel® Killer™ E5000 5Gbps LAN
Internal IO
- 1x Thunderbolt5 card connector(JTBT5, support RTD3)
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x Power Connector(PCIE_PWR 8pin)
- 1x CPU Fan
- 1x PUMP_SYS Fan
- 4x System Fan
- 1x ARGB+FAN Header (JAF_1)
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 1x Tuning Controller connector(JDASH)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 4x USB 5Gbps Type A ports
- 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
- Intel® Killer™ BE1750x Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth® 5.4, MLO, 4KQAM
LED FEATURE

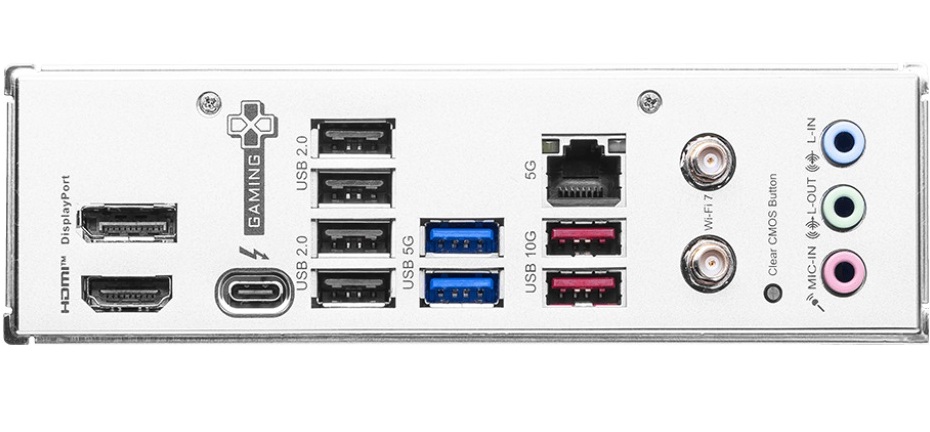

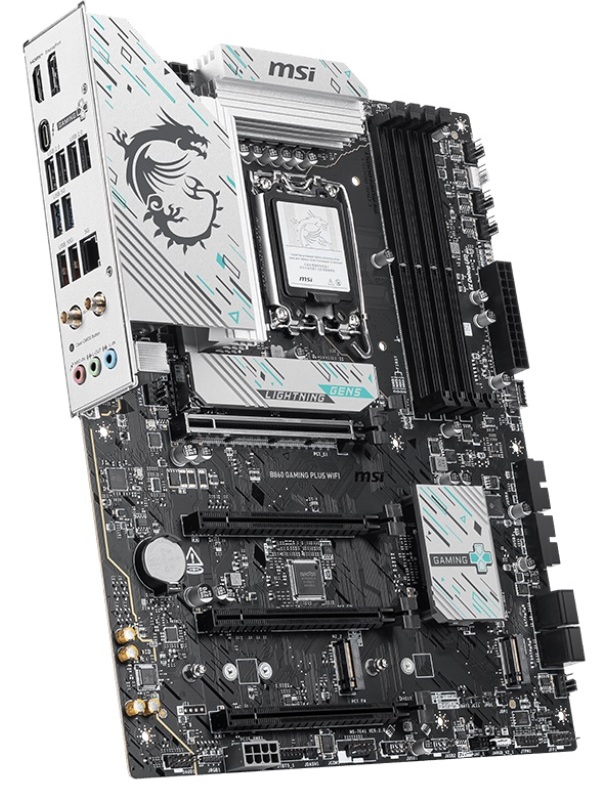

BACK PANEL PORTS
- 4x USB 2.0
- 1x 5G LAN
- 1x Wi-Fi / Bluetooth
- 3x Audio Connectors
- 1x Display Port
- 1x HDMI™
- 1x Thunderbolt™ 4 40Gbps (Type-C)
- 1x USB 5Gbps (Type-A)
- 1x USB 10Gbps (Type-A)
- 1x Clear CMOS Button
OPERATING SYSTEM
- Support for Windows® 11 64-bit
PCB Info
