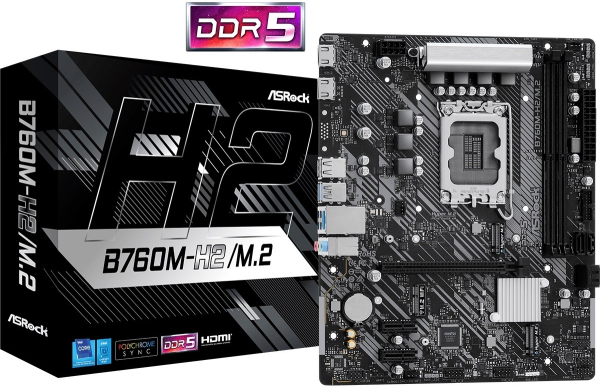

ASRock B760M-H2/M.2
ASRock B760M-H2/M.2
ASRock B760M-H2/M.2
Art.Nr.:
Lieferzeit:
Lagernd, Lieferung ca 1-3 Tage
89,00 EUR
inkl. 19% MwSt. zzgl.
Versand
In den Warenkorb
Finanzierung verfügbar ab 99 EUR bis 5000 EUR Warenkorbwert
Auf den Merkzettel
Frage zum Produkt
Beschreibung
Hersteller/EU Verantwortliche Person
Beschreibung

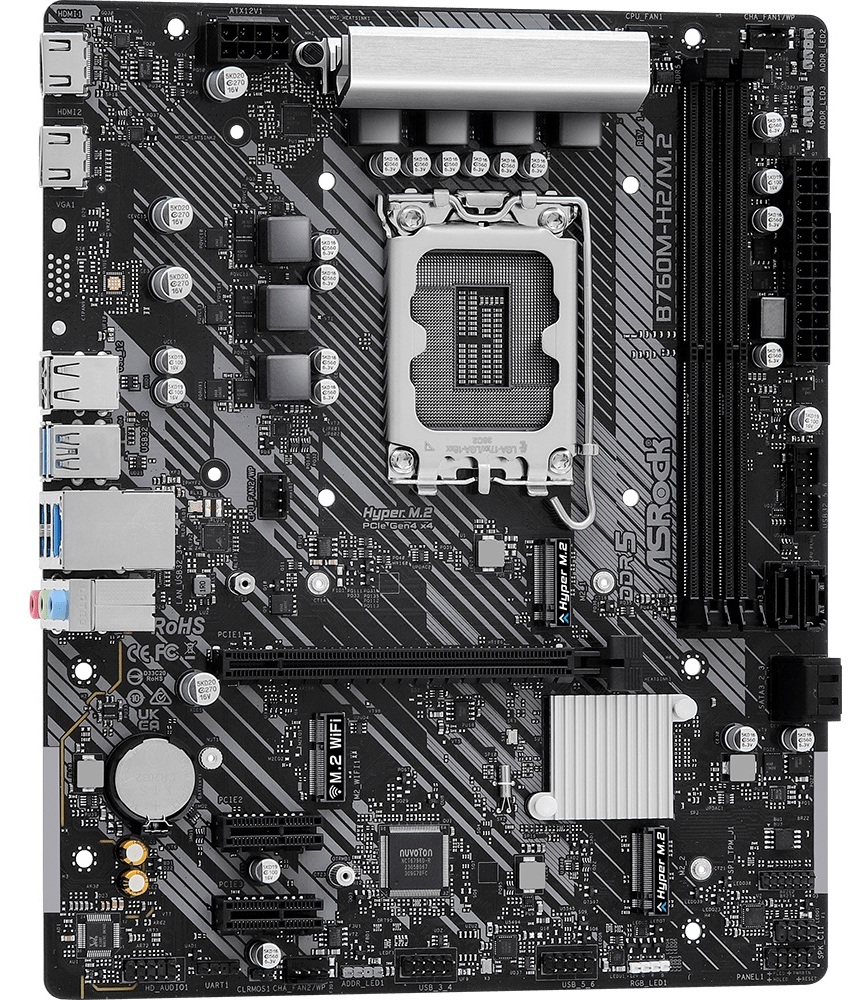

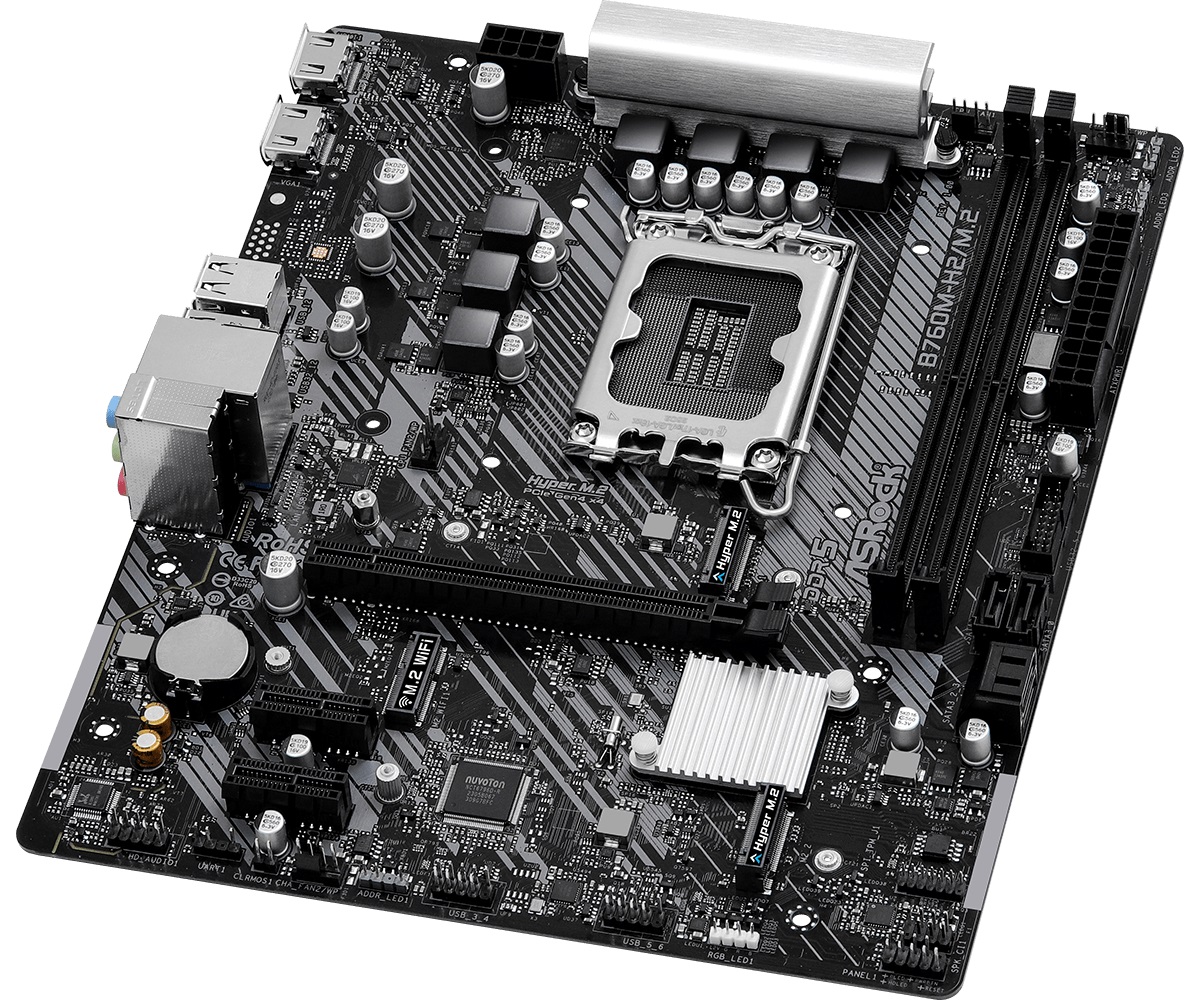

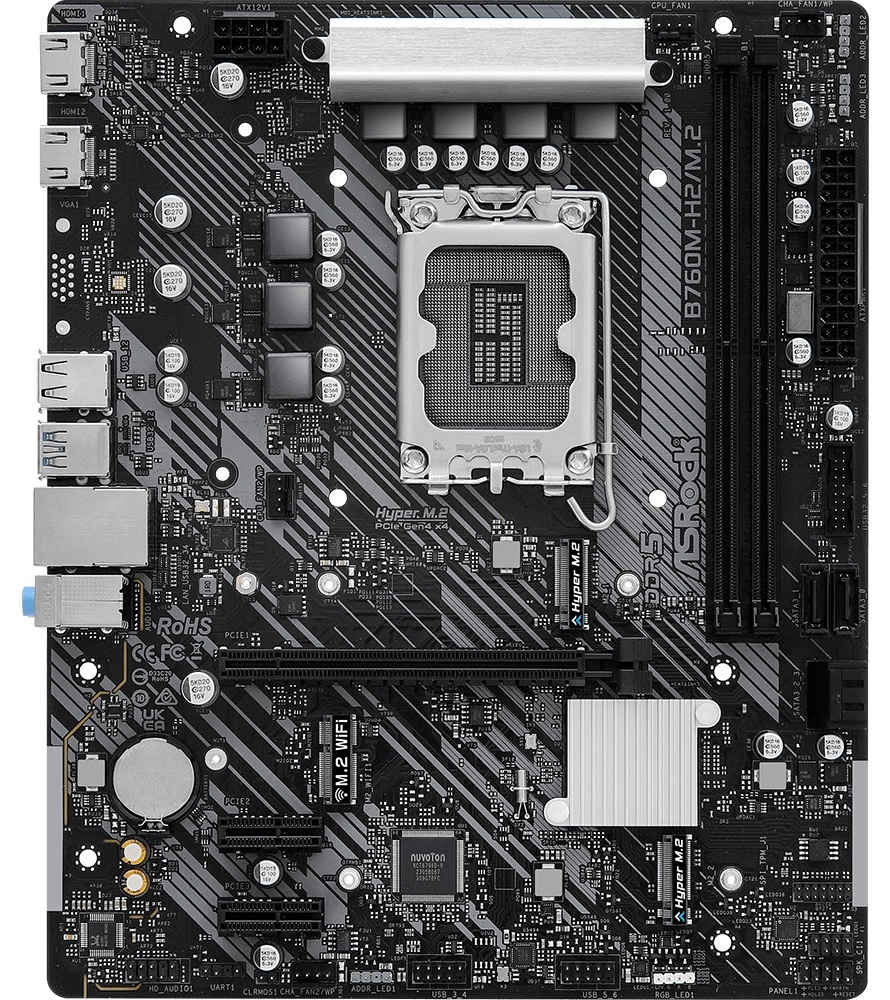

B760M-H2/M.2
Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
5+1+1 Power Phase
2 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC)
1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Graphics Output Options: 2 HDMI
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4)
6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front),
6 USB 2.0 (2 Rear, 4 Front)
Dragon 2.5G LAN
Supports ASRock Auto-Treiber-Installer
Spezifikationen
Einzigartige Features
Hervorragende Produktivität
Dual Channel DDR5
Solide Haltbarkeit
5+1+1 Power Phase
ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
Ultraschnelle Konnektivität
2.5G LAN
EZ-Update
ASRock Auto-Treiber-Installer
CPU
Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost-Technologie (ABT)
Chipsatz
Intel® B760
Arbeitsspeicher
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)
Max. capacity of system memory: 128GB
Supports Intel® Extreme Speicherprofile (XMP) 3.0
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Grafik
Intel® Xe Graphik-Architektur (Gen 12)
2 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. Auflösung up to 4K 60Hz
*Intel® UHD Graphics Built-in Visuals und die VGA-Ausgänge können nur bei der Verwendung von CPUs mit integrierter GPU-Einheit genutzt werden.
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Steckplätze
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Speicherplatz
Chipset:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modes*
4 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Speichergeräte
USB
6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
6 x USB 2.0 (2 Rear, 4 Front)
Anschluss
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

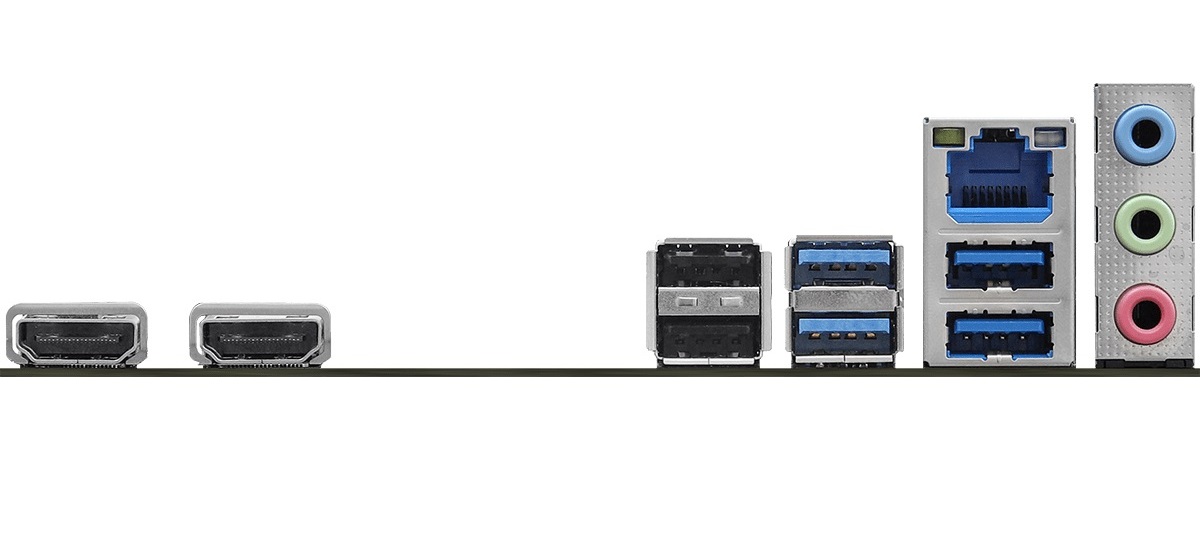

Blende
2 x Antennenmontagepunkte
2 x HDMI Ports
4 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC*
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto-Treiber-Installer
ASRock Sofort-Flash
ASRock Easy RAID Installer

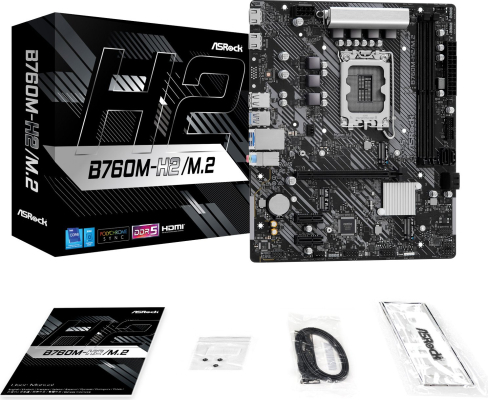

Produktzubehör
1 x Benutzerhandbuch
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
Formfaktor
Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
Betriebssystem
Microsoft® Windows® 10 64-bit / 11 64-bit
Zertifizierungen
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Hersteller/EU Verantwortliche Person
ASRock EUROPE B.V.
Bijsterhuizen 11-11
6546 Nijmegen
Niederlande
