ASRock B760M PG Lightning/D4

Lagernd, Lieferung ca 1-3 Tage Lagernd, Lieferung ca 1-3 Tage
109,00 EUR

inkl. 19% MwSt. zzgl. Versand

Sie können diesen Artikel auch finanzieren!
Informationen zu möglichen Raten
Auf den Merkzettel
Frage zum Produkt
Beschreibung

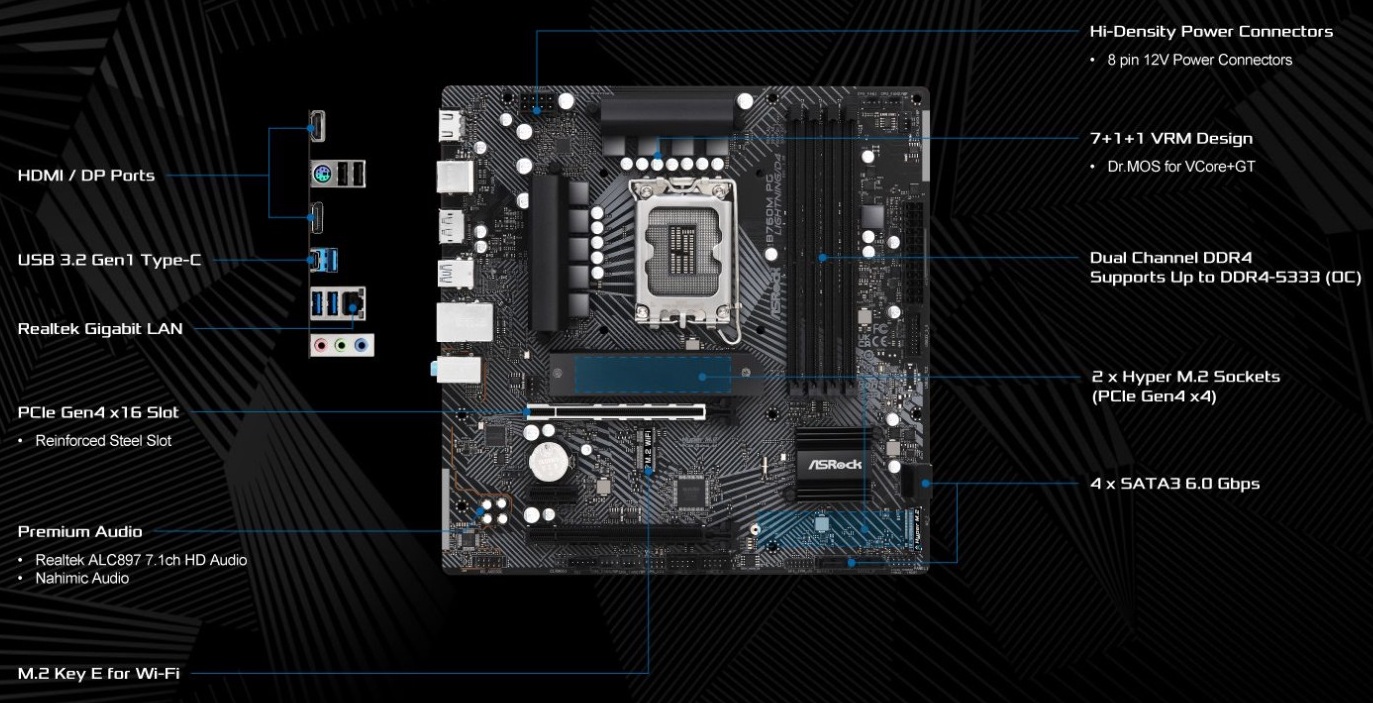

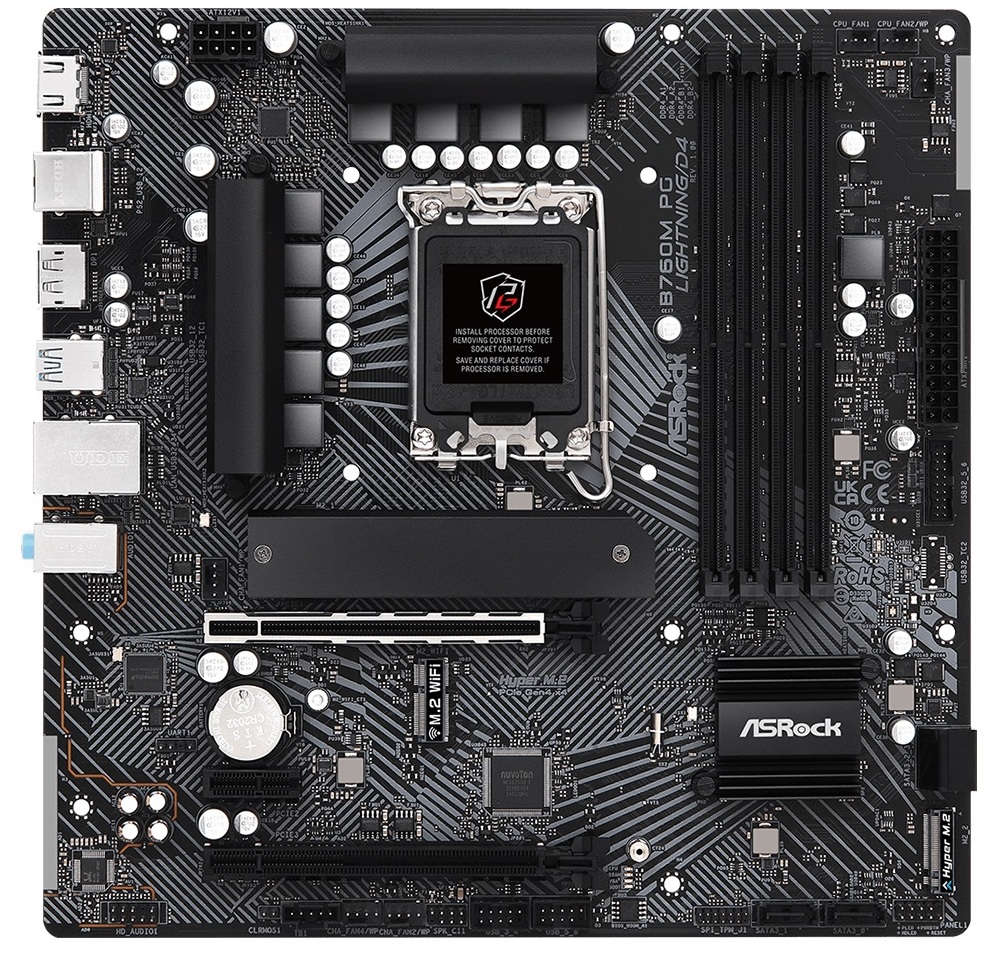

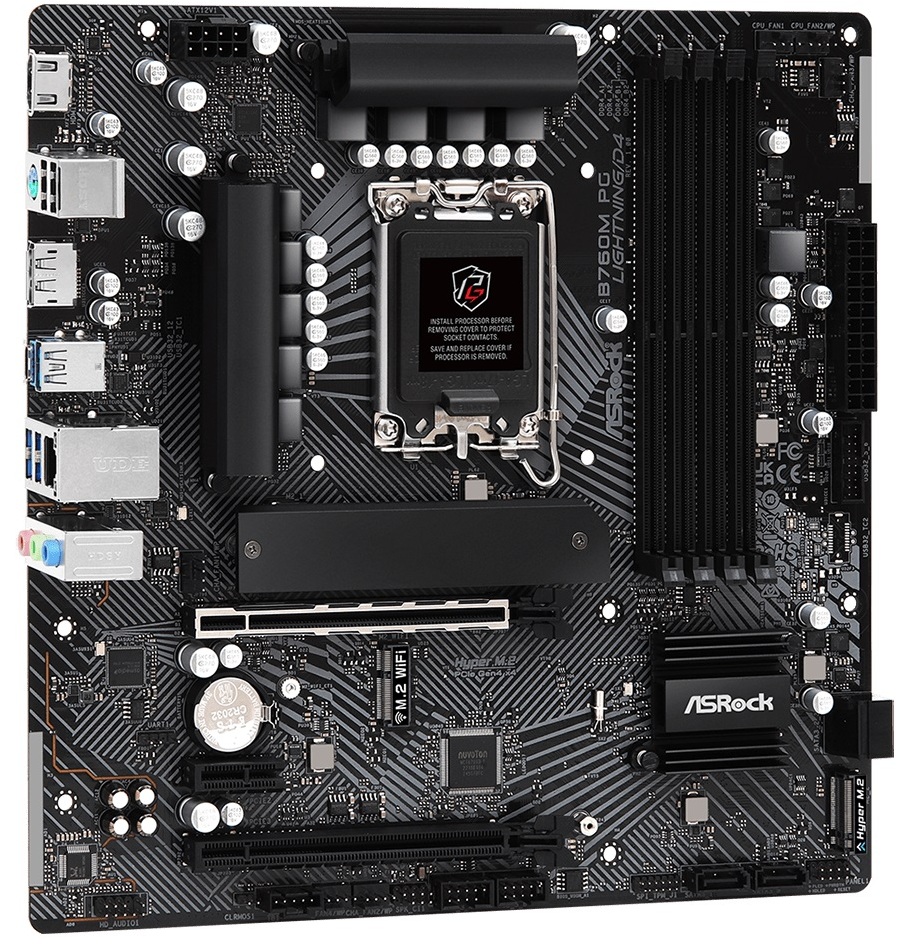

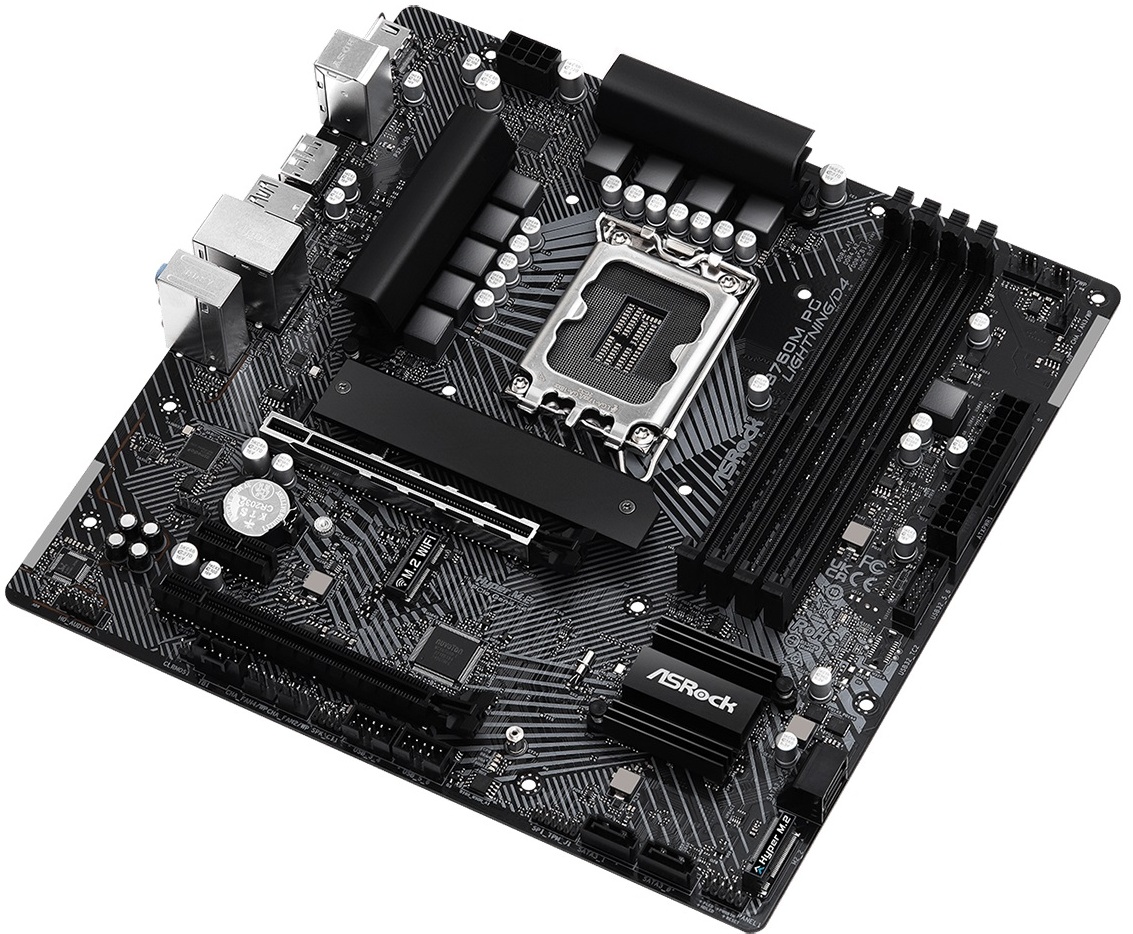

B760M PG Lightning/D4
  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 7+1+1 Power Phase, Dr.MOS for VCore+GT
  • 4 x DDR4 DIMMs
  • Supports Dual Channel, up to 5333+ (OC)
  • 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
  • 1 USB 3.2 Gen1 Type-C (Rear),
  • 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
  • 6 USB 2.0 (2 Rear, 4 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto-Treiber-Installer

Spezifikationen

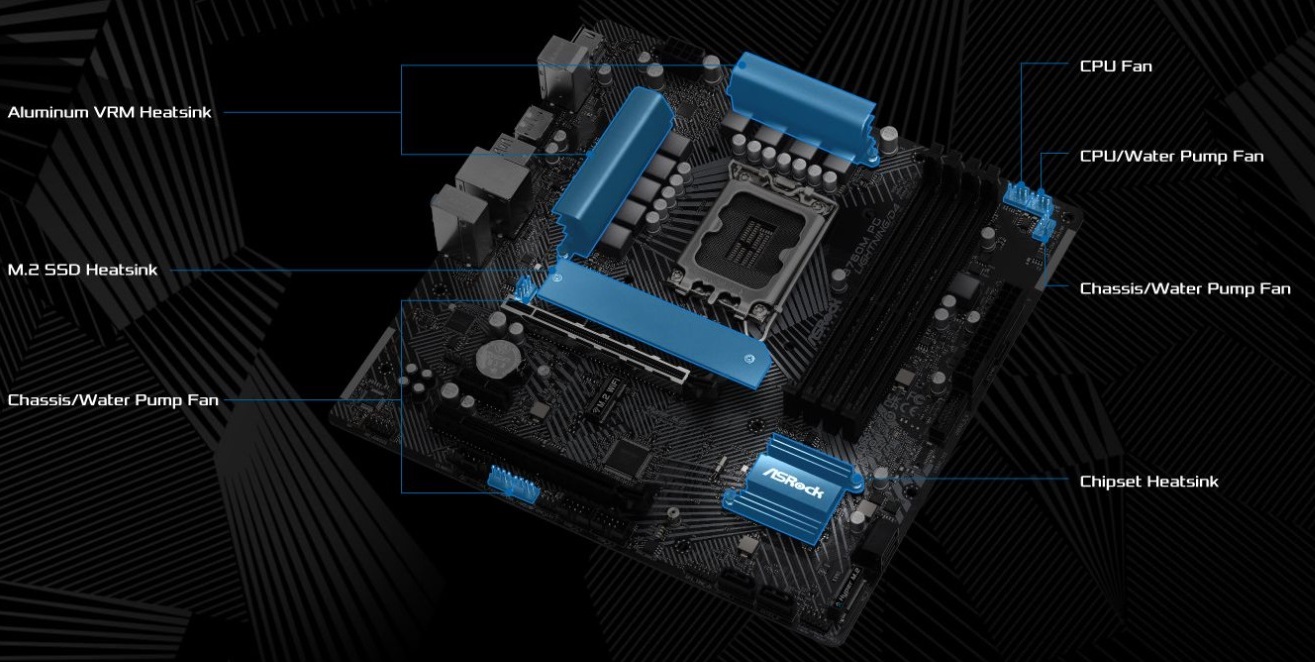

Einzigartige Features
  • Solide Haltbarkeit
  • 7+1+1 Power Phase, 50A Dr.MOS für die VCore+GT
  • ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
  • EZ-Update
  • ASRock Auto-Treiber-Installer
  • EZ Troubleshooter
  • ASRock Post Status Checker
CPU
  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • Supports Intel® Hybrid Technology
  • Supports Intel® Turbo Boost Max 3.0 Technology
  • Supports Intel® Thermal Velocity Boost (TVB)
  • Supports Intel® Adaptive Boost-Technologie (ABT)
Arbeitsspeicher
  • Dual Channel DDR4 Memory Technology
  • 4 x DDR4 DIMM Slots
  • Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)
  • Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 128GB
  • Supports Intel® Extreme Speicherprofile (XMP) 2.0
BIOS
  • 128Mb AMI UEFI Legal BIOS with GUI support
Grafik
  • Intel® Xe Graphik-Architektur (Gen 12)
  • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. Auflösung up to 4K 60Hz
  • 1 x DisplayPort 1.4 with DSC (Komprimiert), supports HDCP 2.3 and max. Auflösung up to 8K 60Hz / 5K 120Hz
  • *Intel® UHD Graphics Built-in Visuals und die VGA-Ausgänge können nur bei der Verwendung von CPUs mit integrierter GPU-Einheit genutzt werden.
Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
LAN
  • Gigabit LAN 10/100/1000 Mb/s
  • Realtek 8111H
Steckplätze
  • CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  • Chipset:
  • 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
  • 1 x PCIe 4.0 x1 Slot (PCIE2)*
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
  • Supports AMD CrossFire™
Speicherplatz
  • CPU:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • Chipset:
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Speichergeräte
USB
  • 1 x USB 3.2 Gen1 Type-C (Rear)
  • 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)
Anschluss
  • 1 x SPI TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin)
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

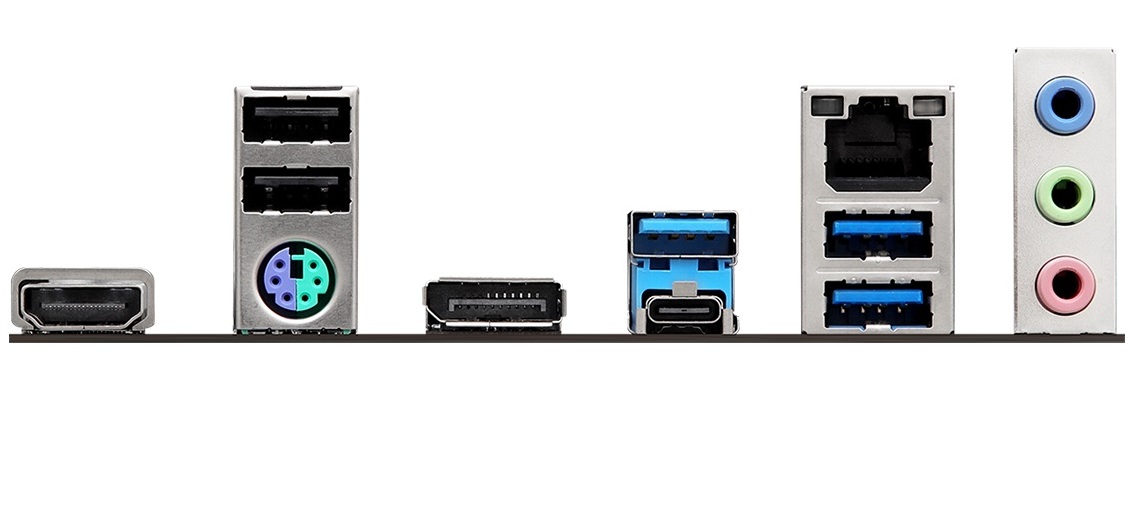

Blende
  • 2 x Antennenmontagepunkte
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen1 Type-C Port
  • 3 x USB 3.2 Gen1 Type-A Ports
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Software
  • ASRock Motherboard Utility (Phantom Gaming-Einstellung)
UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto-Treiber-Installer
  • ASRock Sofort-Flash
  • ASRock Easy RAID Installer

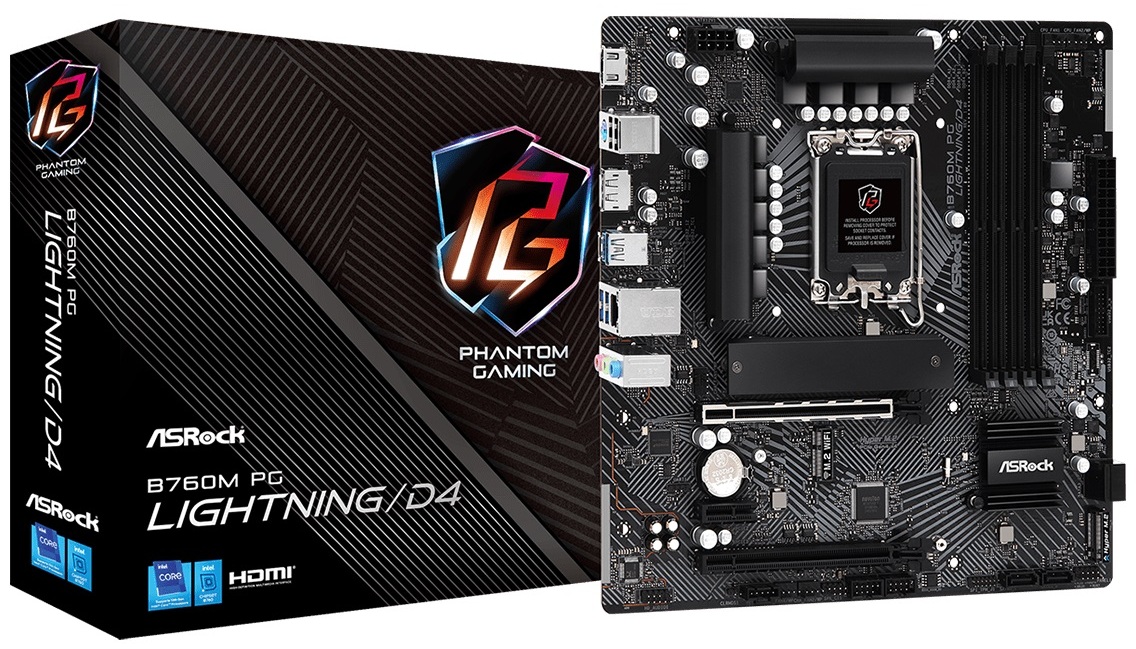

Produktzubehör
  • 1 x Benutzerhandbuch
  • 1 x I/O Shield
  • 2 x SATA Data Cables
  • 3 x Screws for M.2 Sockets
  • 1 x Standoff for M.2 Socket
Formfaktor
  • Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Betriebssystem
  • Microsoft® Windows® 10 64-bit / 11 64-bit
Zertifizierungen
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
