ASUS Prime B760-Plus D4

Lagernd, Lieferung ca 1-3 Tage Lagernd, Lieferung ca 1-3 Tage
Bisher 149,00 EUR
Jetzt 129,00 EUR

inkl. 19% MwSt. zzgl. Versand

Sie können diesen Artikel auch finanzieren!
Informationen zu möglichen Raten
Auf den Merkzettel
Frage zum Produkt
Beschreibung

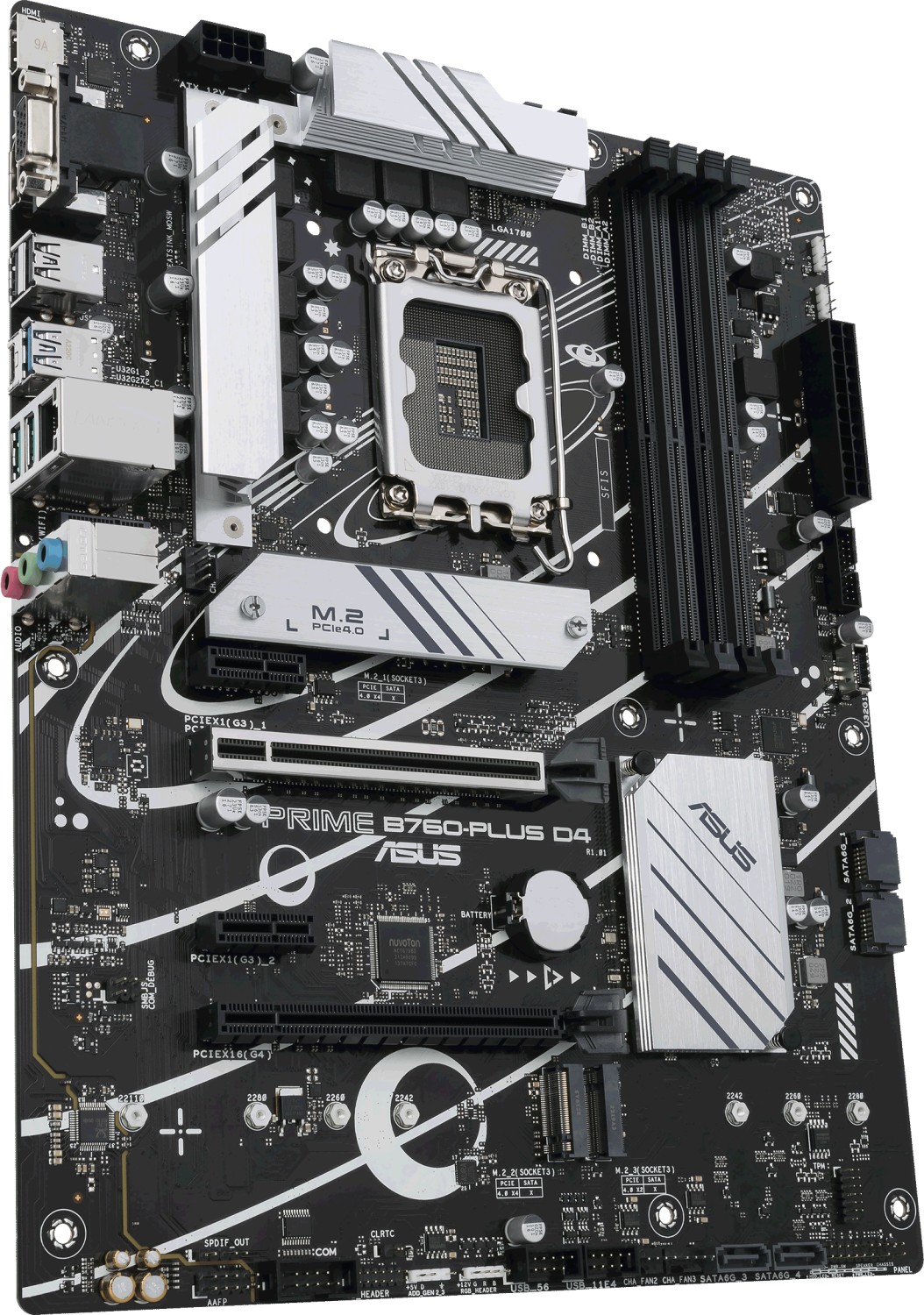

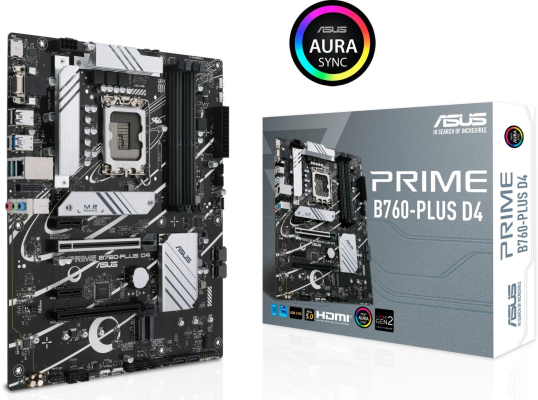

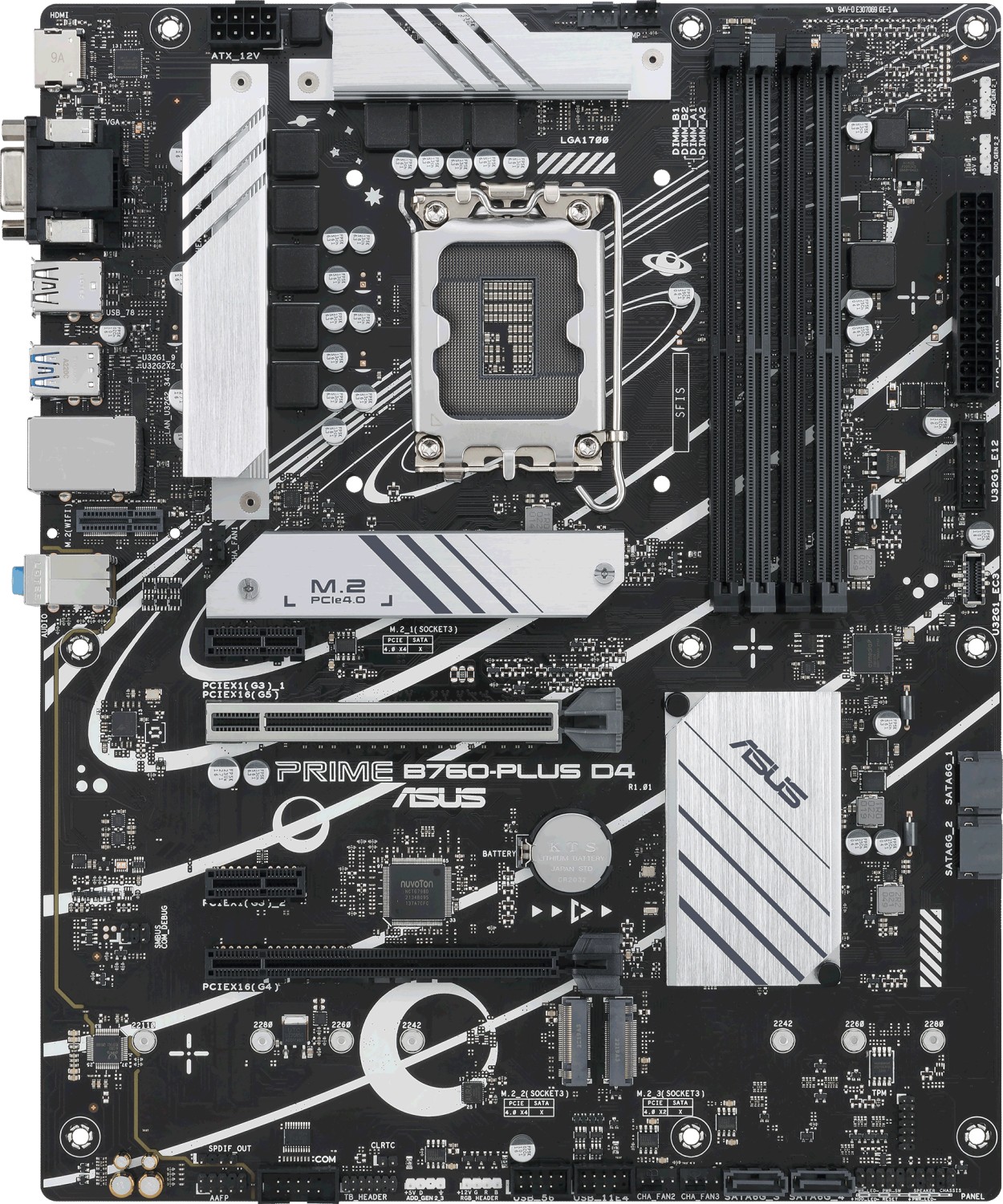

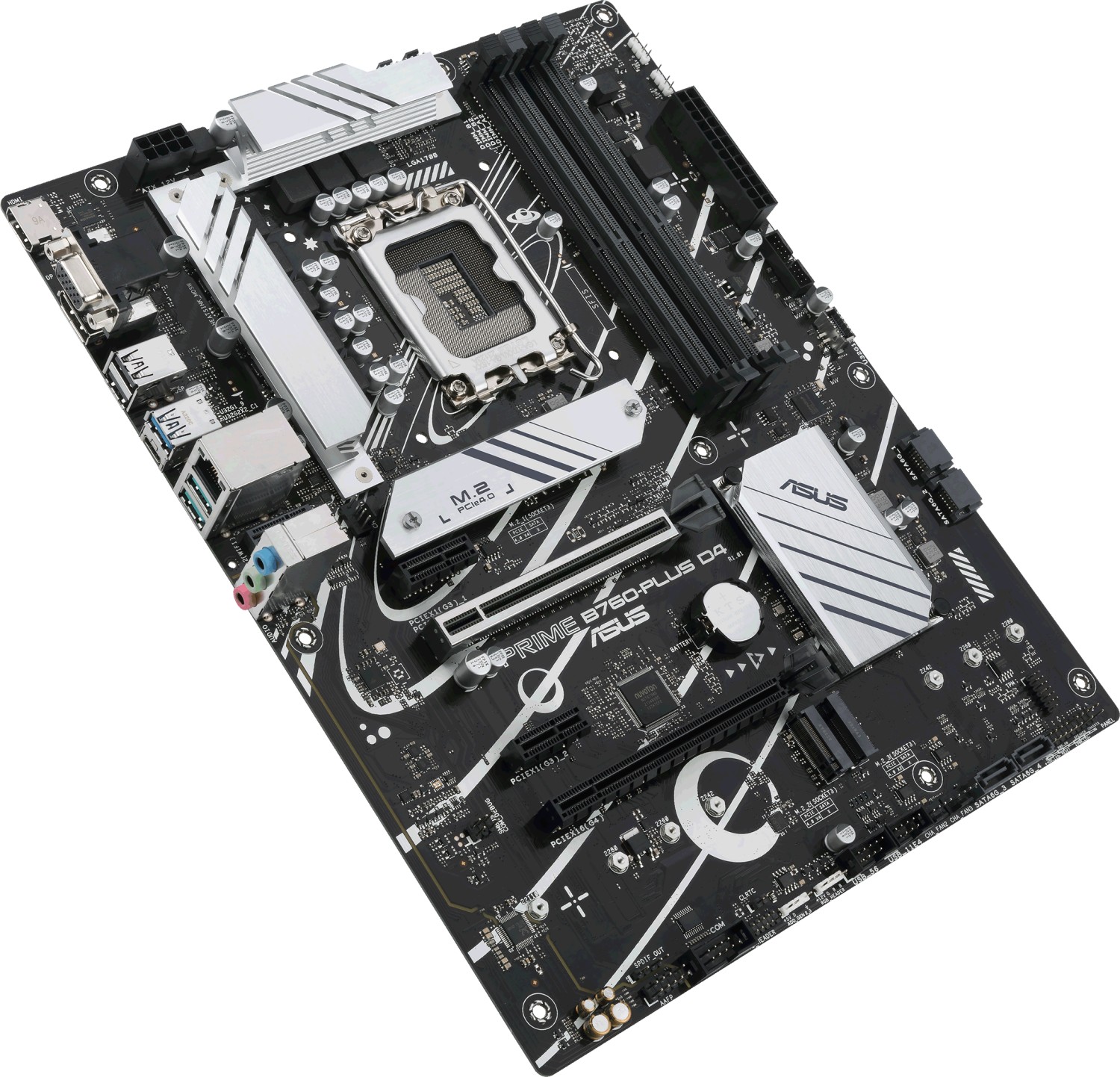

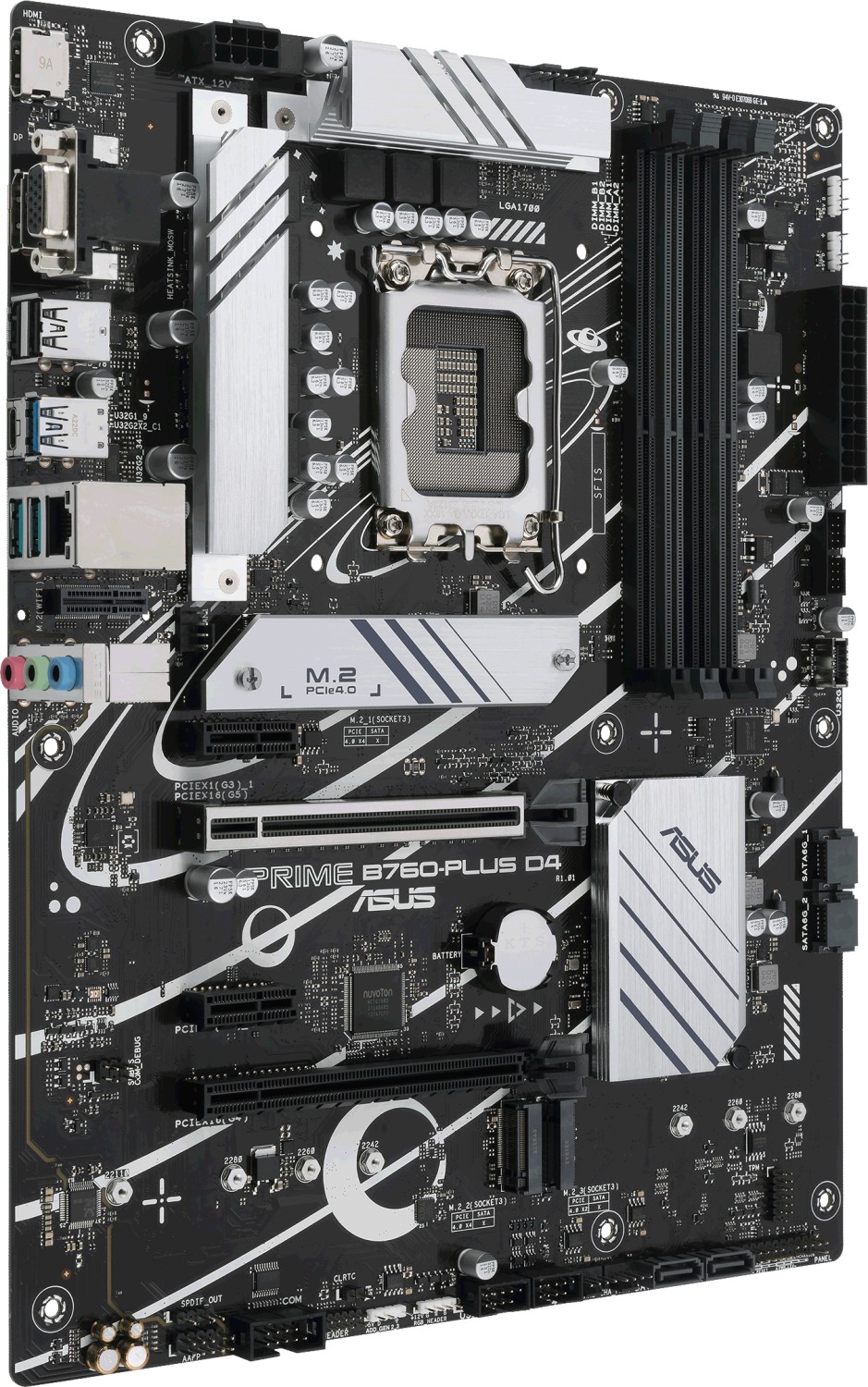

ASUS Prime B760-PLUS D4, ein Intel® B760 LGA 1700 ATX-Mainboard mit PCIe 5.0, drei PCIe 4.0 M.2 Steckplätzen, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, Front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) Unterstützung, Aura Sync
  • Intel® LGA 1700 Sockel: Bereit für die 14. / 13. / 12. Generation der Intel® Prozessoren
  • Ultraschnelle Konnektivität: PCIe 5.0, drei PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, Front USB 3.2 Gen 1 Type-C® und Thunderbolt™ (USB4®) Header Unterstützung
  • Umfassende Kühlung: VRM-Kühlkörper, M.2-Kühlkörper, PCH-Kühlkörper, Hybridlüfter-Header und Fan Xpert 2+
  • ASUS OptiMem: Sorgfältige Verlegung von Leiterbahnen und Durchkontaktierungen zur Wahrung der Signalintegrität für verbesserte Speicherstabilität
  • Aura Sync RGB-Beleuchtung Integrierte adressierbare Gen 2-Header und Aura RGB-Header für RGB-LED-Streifen, die leicht mit Aura Sync-fähiger Hardware synchronisiert werden können

Spezifikationen
Model
  • PRIME B760-PLUS D4
CPU
  • Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
  • Intel® B760 Chipset
Memory
  • 4 x DIMM, Max. 128GB, DDR4
  • 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem
Graphics
  • 1 x DisplayPort**
  • 1 x VGA port
  • 1 x HDMI® port***
  • Graphics specifications may vary between CPU types.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots
  • Intel® Core™ Processors (14th & 13th & 12th Gen)
  • 1 x PCIe 5.0 x16 slot
  • Intel® B760 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 2 x PCIe 3.0 x1 slots
Storage
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® Core™ Processors (14th & 13th & 12th Gen)
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  • 4 x SATA 6Gb/s ports
  • Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
  • 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
  • Vertical M.2 slot only (Key E, CNVi & PCIe)
  • Wi-Fi module is sold separately.
USB
  • Rear USB (Total 6 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 1 x USB 3.2 Gen 1 port (1 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers

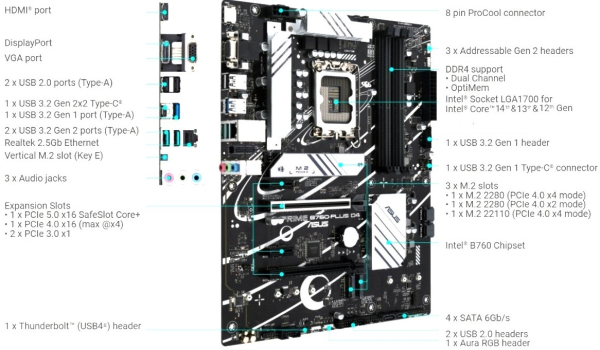

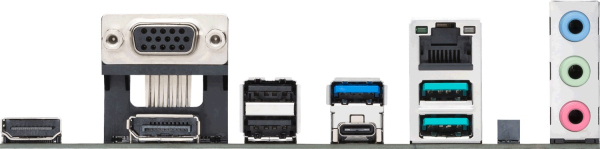

Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 1 x USB 3.2 Gen 1 port (1 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x VGA port
  • 1 x HDMI® port
  • 1 x Vertical M.2 slot (Key E)
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™ (USB4®) header
Special Features
  • ASUS 5X PROTECTION III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • Stainless-Steel Back I/O
  • ASUS Q-Design
  • Q-DIMM
  • Q-LED Core
  • Q-Slot
  • ASUS Thermal Solution
  • M.2 heatsink
  • VRM heatsink design
  • ASUS EZ DIY
  • ProCool
  • Aura Sync
  • Aura RGB header
  • Addressable Gen 2 headers
Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • Aura Creator
  • Aura Sync
  • Fan Xpert 2+
  • Power Saving
  • AI Suite 3
  • DIGI+ VRM
  • PC Cleaner
  • ASUS CPU-Z
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS
Manageability
  • WOL by PME, PXE
Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 2 x Screw Packages for M.2 SSD
  • Documentation
  • 1 x User guide
Operating System
  • Windows® 11, Windows® 10 64-bit
Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
