GIGABYTE B760M H DDR4
GIGABYTE B760M H DDR4
GIGABYTE B760M H DDR4
Art.Nr.:
Lieferzeit:
Lagernd, Lieferung ca 1-3 Tage
99,00 EUR
inkl. 19% MwSt. zzgl.
Versand
In den Warenkorb
Sie können diesen Artikel auch finanzieren!
Informationen zu möglichen Raten
Auf den Merkzettel
Frage zum Produkt
Beschreibung
Hersteller/EU Verantwortliche Person

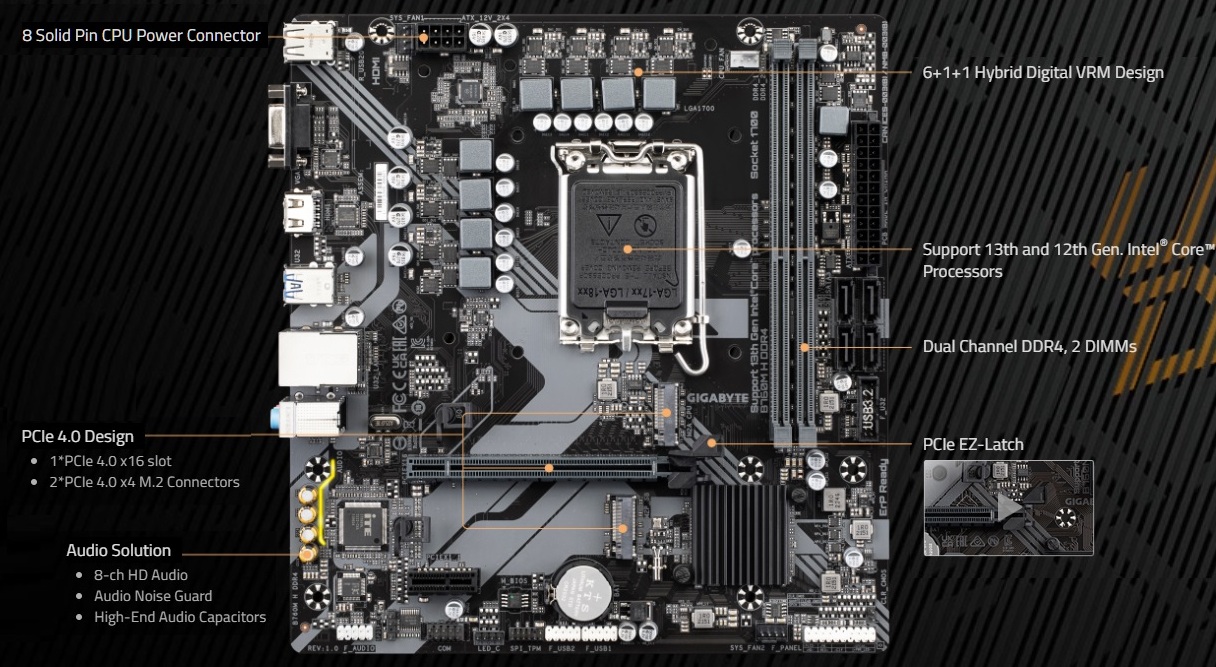

Beschreibung
B760M H DDR4
Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance:Hybrid 6+1+1 Phases Digital VRM Solution
Dual Channel DDR4:2*DIMMs XMP Memory Module Support
Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
Fast Networks:GbE LAN
Extended Connectivity:HDMI, D-Sub
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Spezifikation
Prozessor
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipsatz
Intel® B760 Express Chipset
Arbeitsspeicher
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Grafik
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Erweiterungssteckplätze
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

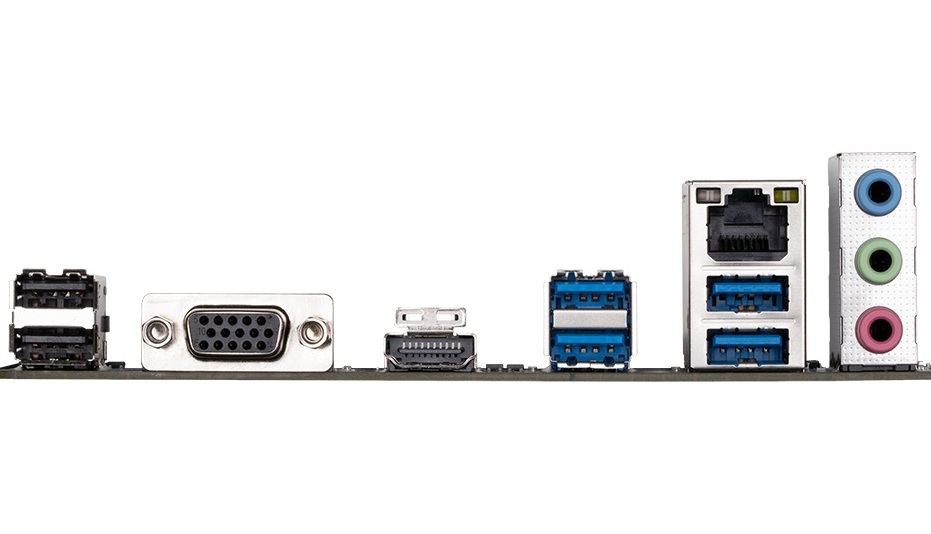

Rückseite I/O Panel
2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
I/O
iTE® I/O Controller Chip
H/W Überwachung
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Einzigartige Funktionen
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Softwarebeigaben
Norton® Internet Security (OEM version)
LAN bandwidth management software
Betriebssystem
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 23.0cm x 21.5cm
Hersteller/EU Verantwortliche Person
Giga-Byte Technology BV
Steenoven 24
5626 Eindhoven
Niederlande
